Water-cooled Water Chiller

Share to:

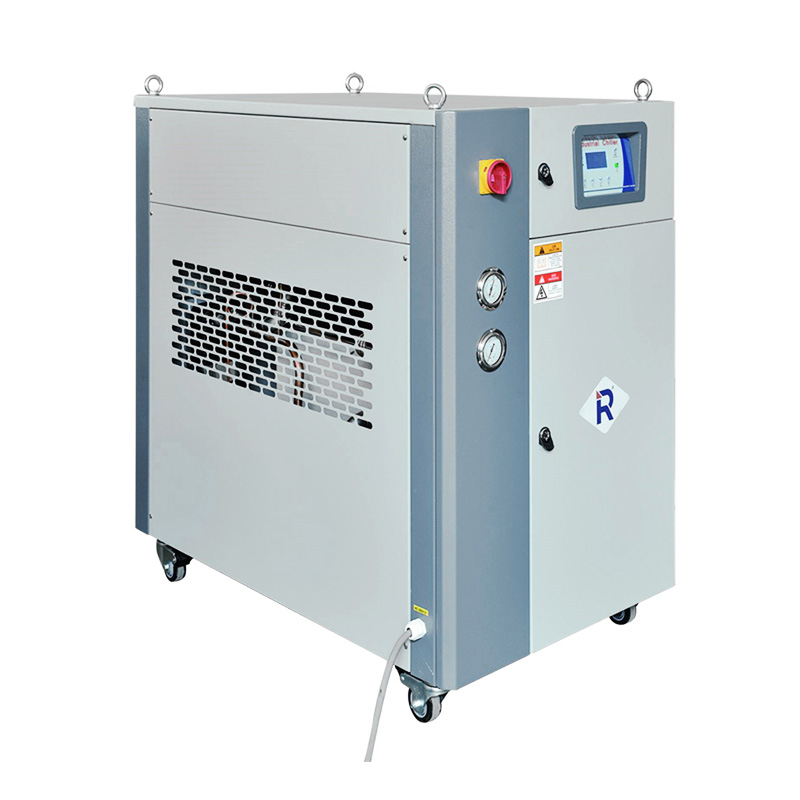

Ningbo Beilun RHONG Machinery R brand RCM-W Series Water Cooled Industrial Chillers are water-cooled type industrial chillers are mainly used to reduce temperature of plastic injection mold and hydraulic oil of injection machine.
  • RCM-3W RCM-5W RCM-8W RCM-10W RCM-12W RCM-15W RCM-20W RCM-25W RCM-30W
Quantity:

General Introduction:

Ningbo Beilun RHONG Machinery R brand RCM-W Series Water Cooled Industrial Chillers are water-cooled type industrial chillers are mainly used to reduce temperature of plastic injection mold and hydraulic oil of injection machine. RHONG water colled industrial water chillers should be connected and work with cooling tower together. Our water chiller machine are mainly used to cool the injection mould and short the time of plastic molding. Our RHONG R brand water cooling chiller machine can control the water temperature at 5~30°C and accuracy betwe ±0.1°C degree Celsius. Except plastic molding, our air cooled water cooling machine can also used in electroplating, food processing, electronic, textile, chemical, etc.



63


Main Features:

1. We use high quality and famous brand of components include compressor, water pump, expansion valve, drying-filter, etc.

2. New designed of stainless steel board type evaporator can supply a high cooling efficiency.

3. High quality of electric components and PCL control system to ensure machine work stable.

4. Anti-freeze and water flow protection system to protect compressor and machine parts from freezing.

5. Overload protection system to protect compressor, water pump and cooling fans.


Specification:

Name

Water Cooled Water Chilling Machine

Model

RCM-

3W

RCM-5W

RCM-8W

RCM-

10W

RCM-

12W

RCM-

15W

RCM-

20W

RCM-

25W

RCM-

30W

Chilling

Capacity

kw

7.5

13.5

20

25.5

31.5

38.5

50

62.5

77.5

Kcal/h

6500

11600

17200

22000

27100

33200

43200

53800

66600

Compressor

HP

3

5

8

10

12.5

15

20

25

30

Refrigerant

R22 / R407C

Evaporator

Tube-in Shell / Stainless Steel Plate Type

Condenser

Tube-in Shell / Stainless Steel Plate Type

Water Tank

L

60

60

95

95

150

150

180

200

280

Pump Power

KW

0.75

1.5

2.2

Max. Flow

L/min

100

200

230

600

Max. Pressure

Kg/cm²

3.2

3

2.4

2.6

Chilling Water Pipe Dia.

1”

1.5”

2.5”

Chilled Water Pipe Dia.

1”

1.5”

2.5”

Drainage Port


1/2”

Overflow Port


1/2”

Weight

kg

120

220

250

300

330

360

450

560

600

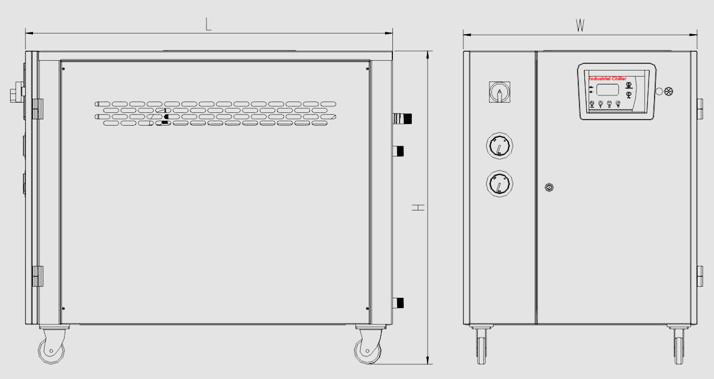

Dimensions:

L

mm

1163

1250

1350

1350

1700

1700

1900

2150

2150

W

mm

760

760

860

960

1200

1200

1200

1480

1480

H

mm

1250

1320

1560

1620

1750

1750

1750

1800

1800


Please excuse for not note if some specifications of products are changed!

Note:

1)The cooling capacity is measured when the outgoing water temperature is 12°C and ambient temperature is 30°C.

2) The standard power supply is 3Ø, 380V, 50HZ. Other power supply is available


001
