General Introduction:

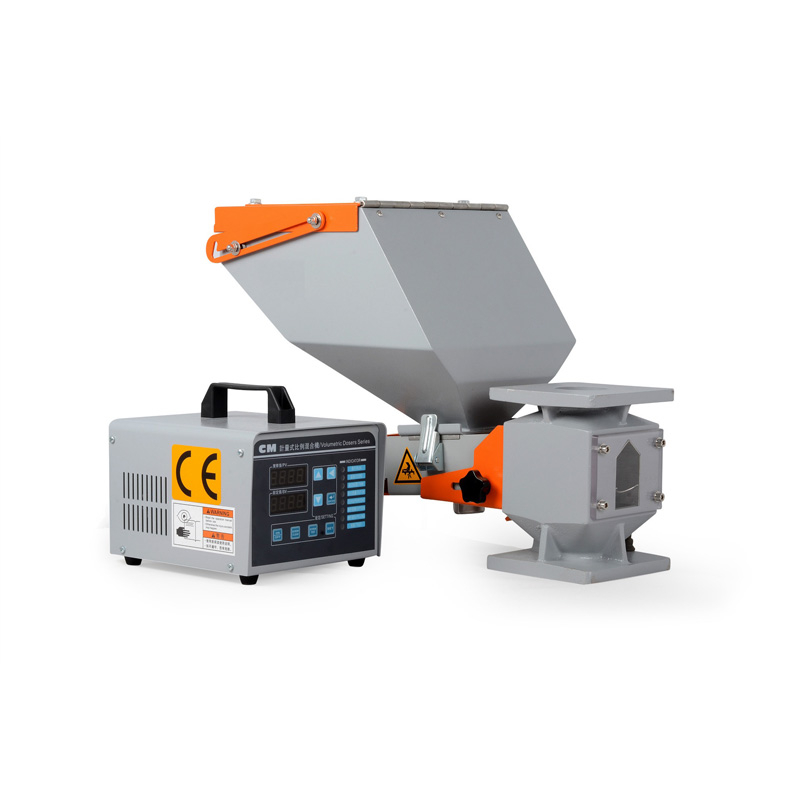

Ningbo Beilun RHONG Machinery R brand CM series volumetric dosing machine is equipment used in injection molding, extrusion molding and blow molding processing to automatically mix 1 main material and 1 or 2 color masterbatches or additives in proportion. Rhong CM series volumetric dosing unit adopts PLC controller to measure the addition ratio of color masterbatch and additives. This blender can operate synchronously with the signal of the forming machine, so that there is no need to store a large amount of pre-dyed raw materials to form product performance. There are five types of screw diameters: 8, 12, 16, 20, 24, which can provide different output of 0.08 to 38 kg per hour for customers to choose. There is also a two-color master batch machine, which can be combined with any two master batch machines according to customer needs use. According to the set mixing proportion, the microprocessor accurately controls rotation of the high precise dosing screw to squeeze out materials with an accuracy of ±1%.
Main Features:
1. Metering masterbatch machine adopts PLC controller to calculate, accurate measurement and output range.
2. Synchronized with the injection molding machine's signal, with formula storage and reading functions, and the machine can be called and started.
3. Automatically monitors the color masterbatch or addition, and automatically adjusts to adapt to changes in the bulk density of the raw materials.
4. Stable operation to ensure the continuity of injection molding machine production..
5. Use metering weighing to control the mixing process. It can realize quantitative feeding, accurate measurement and stable conveying.
6. Humanized design, simple operation, stable machine performance.
Specification:
Name | Single Dosing Unit | Double Dosing Unit | |||||||
Model | CM30-24 | CM30-20 | CM30-16 | CM30-12 | CM30-08 | CM-D30/30 | CM-D30/50 | CM-D50/50 | |
Motor Power (W) | 30 | 30 | 30 | 30 | 30 | 30×2 | 30×2 | 30×2 | |
Motor Speed (rpm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | |
Mixing Power (W) | 90 | 90 | 90 | 90 | 90 | 90 | 90 | 90 | |
Screw Diameter (mm) | 24 | 20 | 16 | 12 | 8 | * | * | * | |
Output(kg/h) | 0.8-38 | 0.4-20 | 0.2-10 | 0.1-3 | 0.08-1.5 | ** | ** | ** | |
Hopper (L) | 12 | 12 | 12 | 12 | 12 | 12×2 | 12×2 | 12×2 | |
Reducing Ratio | 30 | 30 | 30 | 30 | 50 | 30 / 30 | 30 / 50 | 50 / 50 | |

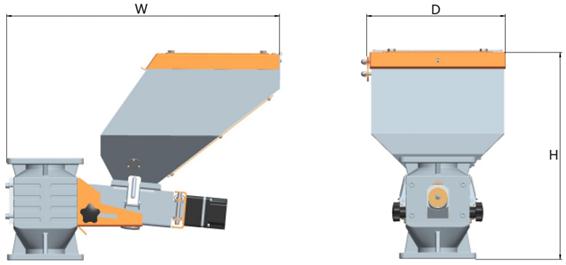

Dimensions: | |||||||||
H mm | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | |
W mm | 550 | 550 | 550 | 550 | 550 | 930 | 930 | 930 | |
D mm | 295 | 295 | 295 | 295 | 295 | 295 | 295 | 295 | |
Weight (kg) | 17 | 17 | 17 | 17 | 17 | 30 | 30 | 30 | |
Please excuse for not note if some specifications of products are changed.
The above specifications are got based on below situation:
1. Material specific gravity is 0.8/dm³.
2. Material diameter 2-3mm.
3. Machine working continuously.
Note：
1. The standard power supply is 1Ø 220V 50Hz. Other power supply is available.
2. Mixing base (frame) is for optional purchasing.
