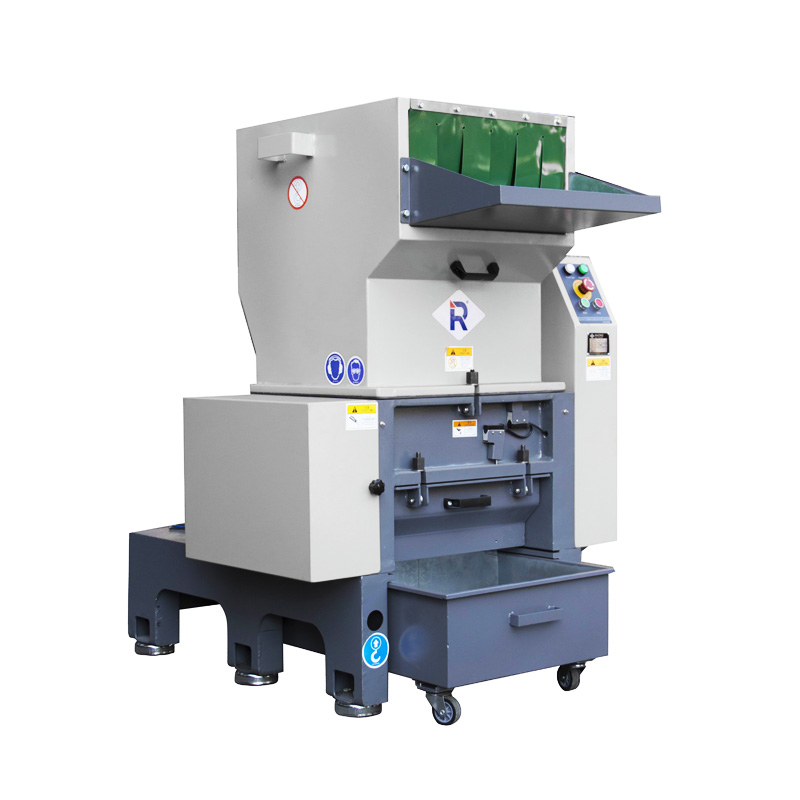

Strong Plastic Crusher Granulator

Share to:

China Ningbo Beilun Rhong Machinery R brand RG Series powerful centralized plastic crusher machine and granulating machine are used to granulate various kinds of plastic waste and sprues.

  • RG-2630E RG-2640E RG-2650E RG-3660E RG-3670E RG-3680E RG-4680E RG-46100E
Quantity:

General Introduction:

China Ningbo Beilun Rhong Machinery R brand RG Series powerful centralized plastic crusher machine and granulating machine are used to granulate various kinds of plastic waste and sprues. The main function of our plastic granulators is to reduce the size of different plastic wastes material like PET bottles, plastic boxes, plastic drums, plastic cases, pipes, films and sheets into smaller regrinded pellets and flakes. Rhong R brand plastic crusher machines are suitable to crush different hard and soft plastic wastes like HDPE, LDPE, UPVC, PP, PC, ABS, etc. Rhong RG-E Series plastic granulator machine play an important role in plastic recycling and processing industry.

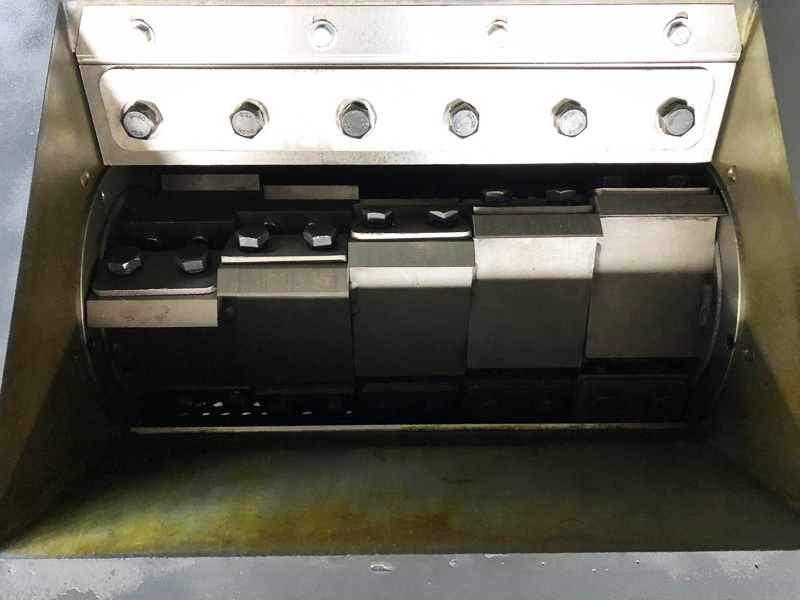

F-Type

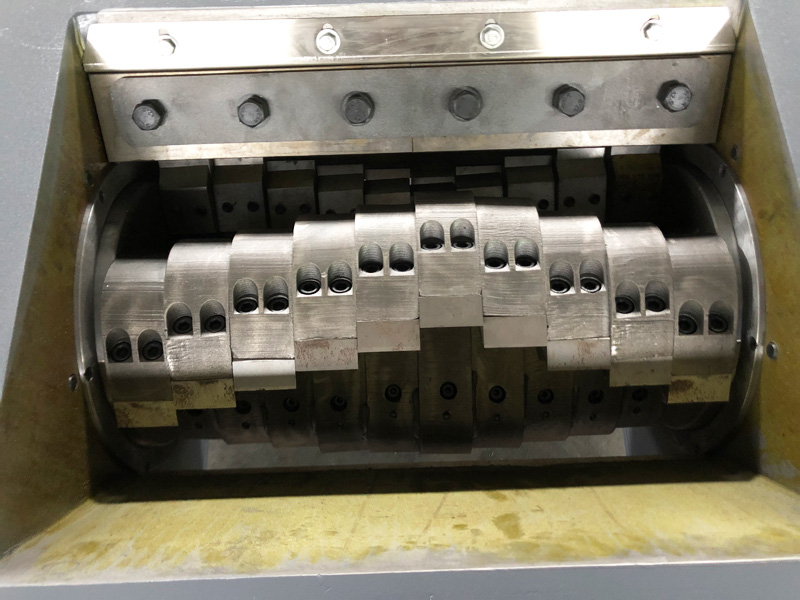

IMG_1115

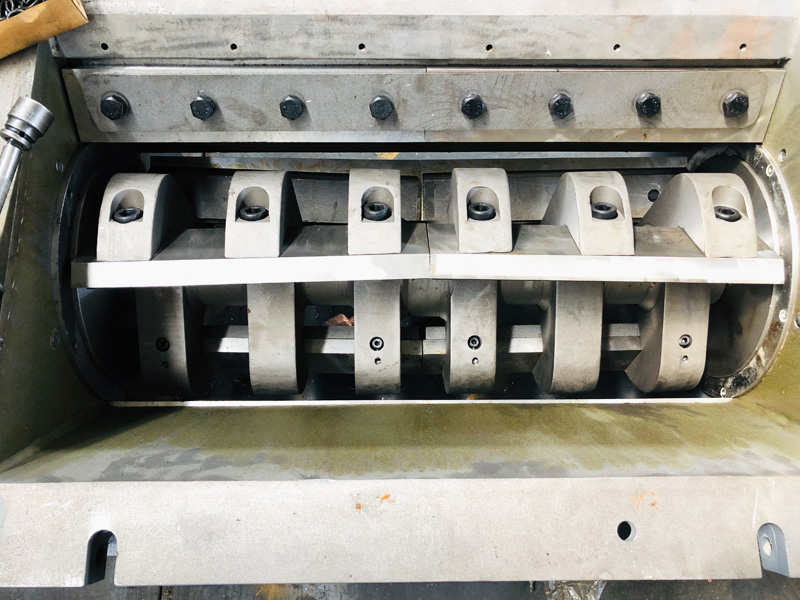

IMG_3242(20190414-003536)


Main Features:

1. Optimized design of blades structure, easy installation and maintenance

2. Overload system to protect motor and safety switches to protect people.

3. Compact structure of machine to save space of workshop.

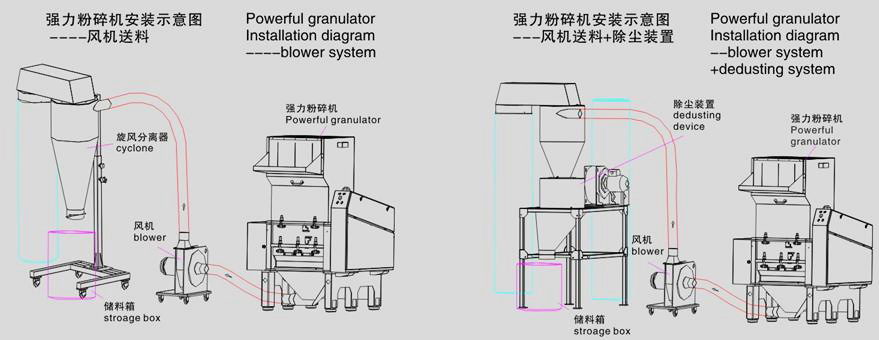

4. Blower conveyor, cyclone (silo) system and dust separator system are available.

5. Special designed bearings block keep dust away, long life using

6. V-shaped blades, Claw blades and Flat blades are optional for different customers’ request

7. Plastic Crusher equipped with shockproof pad to reduce vibration and noise.


Specification:

Name

Powerful   Plastic Granulator / Crusher

Model

RG-2630E

RG-2640E

RG-2650E

RG-3660E

RG-3670E

RG-3680E

RG-4680E

RG-46100E

Rotor Diameter

mm

260

260

260

360

360

360

460

460

Power

kw

5.5

7.5

11

15

18.5

22

30

37

Rotor Speed

rpm

560

560

560

560

560

560

560

560

Rotating Blades




pcs



3

6

6

6

6

6

6

6

-B

9

12

15

18

21

24

24

27

-A

18

24

30

30

36

42

42

48

Fixed Blades

pcs

2

2

2

4

4

4

4

4

Screen Diameter


Ø10

Ø10

Ø10

Ø12

Ø12

Ø12

Ø12

Ø12

Chamber Size

mm

370x300

370x400

370x500

480x600

480x700

480x800

660X800

660X1000

Output

kg/h

270~350

300~500

400~600

500~700

600~800

700~1000

800~1200

900~1300

Noise

dB(A)

80~95

80~95

80~95

80~95

80~95

80~95

80~95

80~95

Magnet at   Feeding Mouth

Blower Conveying & Cyclone System

Manual Box

Weight

kg

490

530

600

1200

1400

1600

2050

2350

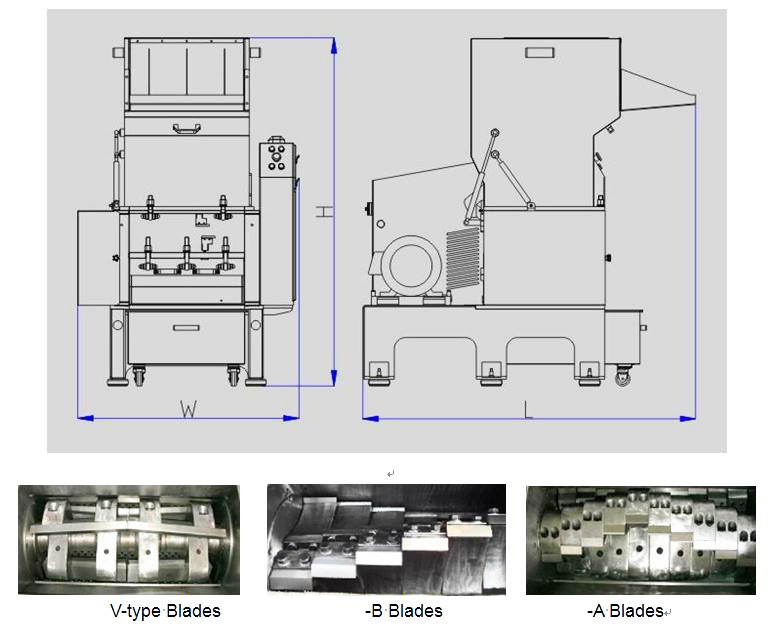

Dimensions:

L

mm

1420

1420

1420

1760

1760

1760

1510

1510

W

mm

830

930

1030

1170

1270

1370

2010

2210

H

mm

1410

1410

1410

1835

1835

1835

2560

2560


Please excuse for not note if some specifications of products are changed.

Note:

1)""is standard configuration,"" is optional to purchase.

2) “V” Type rotating blades is standard type; F Type flat rotating blades and C type claw rotating blades is optional to purchase.

3)The maximum crushing output depends on the screen diameter, material quality and feeding frequency.

4) The screen mesh diameter can be made according to customers’ request.

5)The running noise depends on varied shredding material.

6)The standard power supply is 3Ø 380V 50Hz. Other power supply is available.
