Slow-speed Screenless Granulator

Share to:

Ningbo Rhong Machinery R brand low speed granulator is mainly used to crush different plastic material from mold of injection machine.

  • RG-2720R RG-2730R RG-2740R RG-2750R
Quantity:

General Introduction:

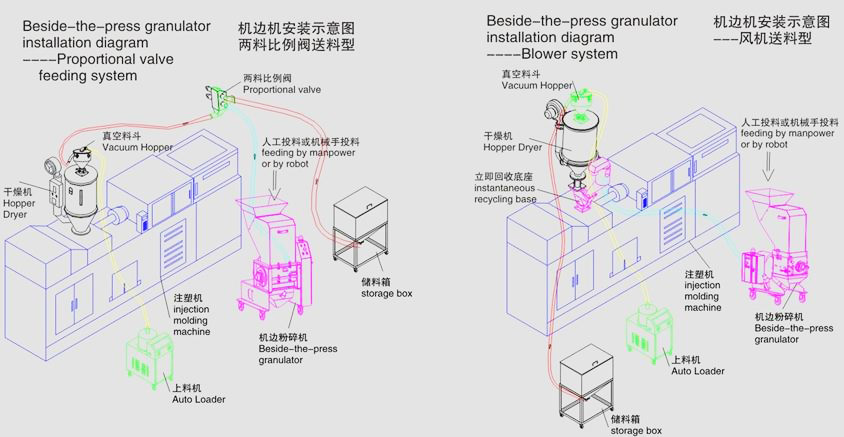

Ningbo Rhong Machinery R brand low speed granulator is mainly used to crush different plastic material from mold of injection machine. The machine is normally installed beside injection molding machine. Our RG-27R Series granulators are suitable to granulate transparent material, such as acrylic (PMMA), plexiglass, PET preform, PP and PC material, etc. The rotor shaft of the granulator machine runs in very slow speed, it can reduce the running noise in workshop and dust pollution to the granulated material. The low speed plastic granulator (grinder, crusher) is equipped with blower conveyor and cyclone system, they are very useful to convey the crushed material into injection molding machine immediately.



65


Main Features:

1. Low power consumption, low running noise, low dust pollution.

2. Special designed knifes ensure the high granulating efficiency.

3. High quality gear motor supply a stable performance and long life working.

4. Electrical protection system to protect machine and people in safe.

5. Blower conveying and cyclone system to save manpower.


Specification:

Name

Slow Speed Screenless Granulator

Model

RG-2720R

RG-2730R

RG-2740R

RG-2750R

Power

kw

0.75

1.5

2.2

2.2

Rotor   Speed

rpm

38

38

38

38

Rotating   Claw Blades

pcs

1

2

3

4

Rotating   Teeth Blades

pcs

2

3

4

5

Fixed   Blades

pcs

5

7

9

11

Cutting   Room Size

mm

275x200

275x300

275x415

275x525

Output

kg/h

8~10

10~15

15~25

25~40

Noise

dB(A)

60~75

60~75

60~75

60~75

Blower   Conveying


Cyclone   for fast recycling


Proportional   Valve


Manual   Box


Weight

kg

280

350

400

450

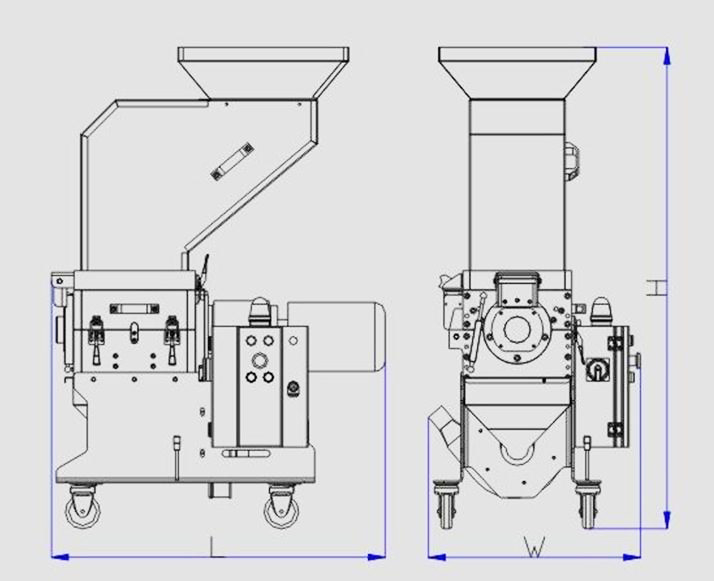

Dimensions:

L

mm

860

970

1120

1230

W

mm

615

615

615

615

H

mm

1395

1395

1495

1495


Please excuse for not note if some specifications of products are changed!

Note:

1)"" means standard configuration, "" means optional accessories.

2) The maximum output capacity depends on material quality and specific gravity.

3) The actual noise is based on material features and hardness.

4)The standard power supply is 3phase, 380V, 50Hz. Other power supply is available.
