General Introduction:

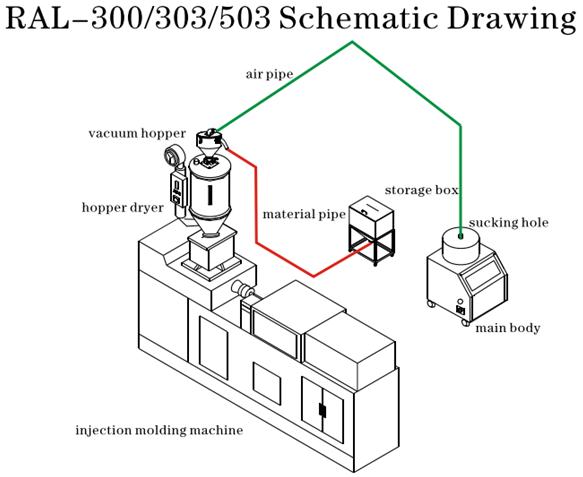

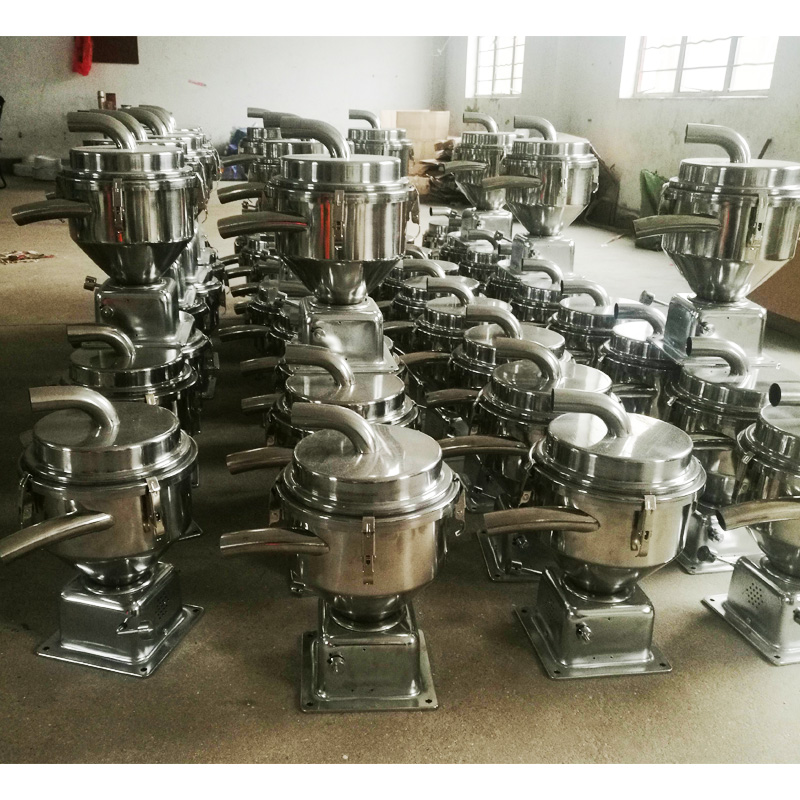

China Ningbo Beilun RHONG Machinery Manufacturing Co., Ltd. R brand RAL-300 plastic pellets vacuum hopper autoloaders are used for transportation of plastic material into injection molding machine to save manpower. Our RHONG brand vacuum autoloaders can convey plastic pellets and granules automatically and continuously.
Main Features:
1. Machine equipped with imported AMETEK carbon-brush motor with high capacity powerful suction force.
2. RAL-300 Autoloader equipped with filters to clean the dust inside material and keep workshop clean.
3. High quality and famous brand electric parts ensure stable work of machine.
4. Stainless steel vacuum hopper, keep material without pollution.
5. Microcomputer stops machine when injection hopper is full and alarm when material shortage.
6. Thermo relay to protect vacuum pump without burning.
Specification:
Model | Motor | Conveying Capacity (Kg/h) | Hopper Capacity (L) | Conveying Pipe diameter (mm) | Dimensions (mm) | Weight (Kg) | |
Type | Power | ||||||
RAL-300 | Carbon Brush | 1.5HP/1Phase | 300 | 6 | Ø38 | 550x 400 x350 | 20 |
Please excuse for not note if some specifications of products are changed!
Note：
1) The test condition of conveying capacity: vertical distance 4 meters, horizontal distance 1 meter.
2) The standard power voltage for RAL-300 is 1Ø 220V 50/60Hz.
General Introduction:
China Ningbo Beilun RHONG Machinery Manufacturing Co., Ltd. R brand RAL-300 plastic pellets vacuum hopper autoloaders are used for transportation of plastic material into injection molding machine to save manpower. Our RHONG brand vacuum autoloaders can convey plastic pellets and granules automatically and continuously.
Main Features:
1. Machine equipped with imported AMETEK carbon-brush motor with high capacity powerful suction force.
2. RAL-300 Autoloader equipped with filters to clean the dust inside material and keep workshop clean.
3. High quality and famous brand electric parts ensure stable work of machine.
4. Stainless steel vacuum hopper, keep material without pollution.
5. Microcomputer stops machine when injection hopper is full and alarm when material shortage.
6. Thermo relay to protect vacuum pump without burning.
Specification:
Model | Motor | Conveying Capacity (Kg/h) | Hopper Capacity (L) | Conveying Pipe diameter (mm) | Dimensions (mm) | Weight (Kg) | |
Type | Power | ||||||
RAL-300 | Carbon Brush | 1.5HP/1Phase | 300 | 6 | Ø38 | 550x 400 x350 | 20 |
Please excuse for not note if some specifications of products are changed!
Note：
1) The test condition of conveying capacity: vertical distance 4 meters, horizontal distance 1 meter.
2) The standard power voltage for RAL-300 is 1Ø 220V 50/60Hz.
