General Introduction:

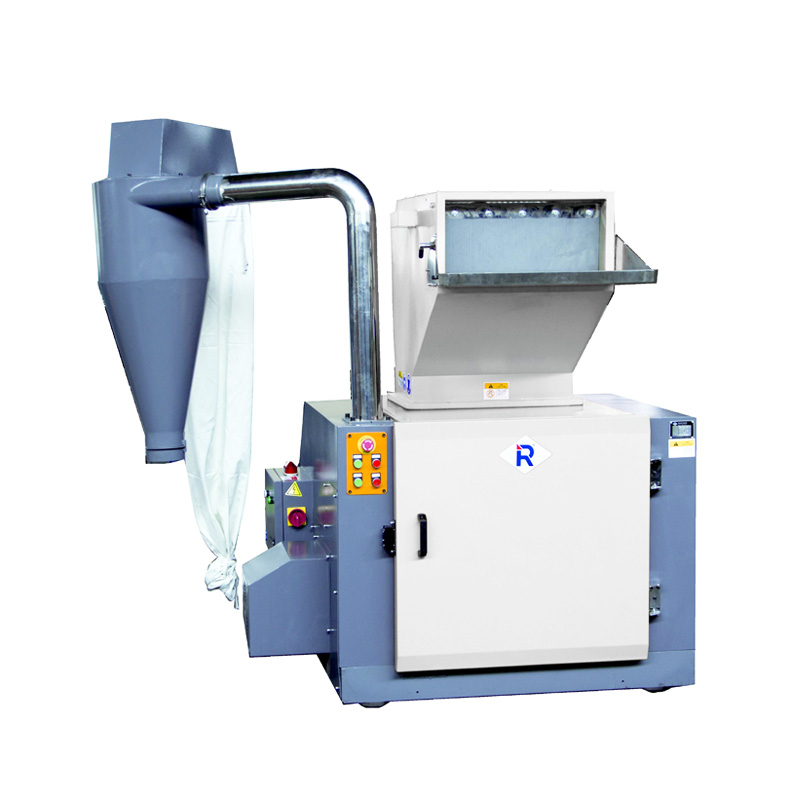

Ningbo Beilun Rhong Machinery Co., Ltd., R brand RG-26GQ and RG-36GQ Series soundproof plastic recycling granulator crusher machines are used to granulate and crush all kinds of plastic wastes material. Our RHONG R brand soundproof plastic granulator machines are designed with soundproof covers to reduce the noise of plastic crusher machine. And the plastic crushing machines equipped with built-in blower conveyor and external cyclone system to reduce the dust pollution to grinded material.
Main Features:
1. Soundproof design with low working noise.
2. Electric and mechanical safety system to keep machine and people in safe.
3. Optimized blade structure ensures high output capacity.

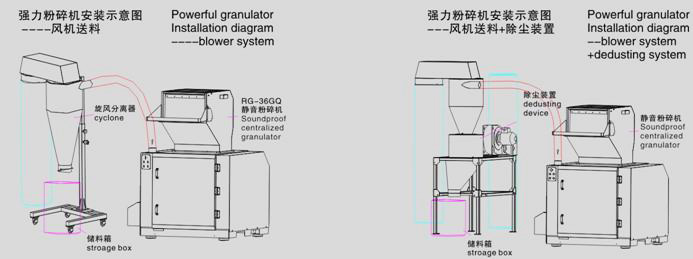

4. Blower conveyor and cyclone system can save manpower for material packing and transportation.

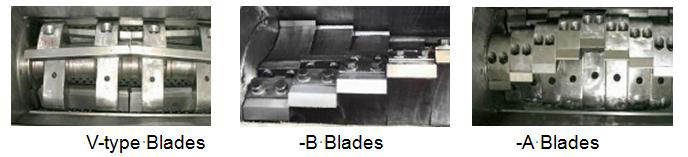

5. Three different types of rotating blades (V-shaped, Claw Type and Flat Type) are available.
6. Electric motor screw system to open / close the crushing room, easy to clean machine and change blades.
Specification:
Name | Rhong R brand Soundproof Plastic Granulator | |||||
Model | RG-2640GQ | RG-2650GQ | RG-3660GQ | RG-3680GQ | ||
Power | kw | 11 | 15 | 18.5 | 30 | |
Rotor Speed | rpm | 560 | 560 | 560 | 560 | |
Rotating Blades | V type |
pcs
| 6 | 6 | 6 | 6 |
-B | 12 | 15 | 18 | 24 | ||
-A | 24 | 30 | 30 | 42 | ||
Fixed Blades | pcs | 2 | 4 | 4 | 4 | |
Screen Diameter | Ø10 | Ø10 | Ø12 | Ø12 | ||
Chamber Size | mm | 320x400 | 320x500 | 460x600 | 460x800 | |
Output | kg/h | 300~550 | 400~650 | 500~700 | 600~900 | |
Noise | dB(A) | 70~80 | 70~80 | 70~80 | 70~80 | |
Magnet at Feeding Mouth | ○ | ○ | ○ | ○ | ||
Blower Conveyor & Cyclone System | ● | ● | ● | ● | ||
Weight | kg | 650 | 750 | 1500 | 1800 | |

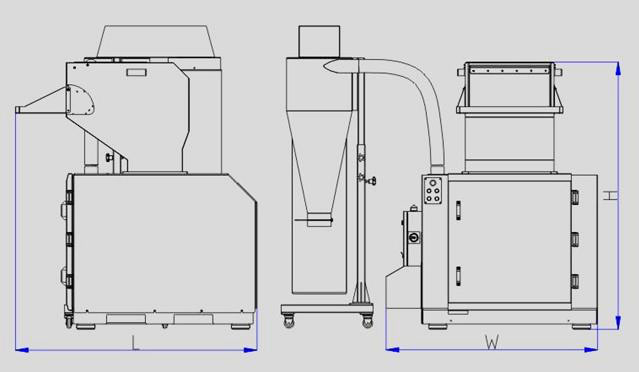

L | mm | 1290 | 1290 | 1275 | 1275 | |
W | mm | 1375 | 1475 | 1620 | 1820 | |
H | mm | 1630 | 1630 | 2020 | 2020 | |
Please excuse for not note if some specifications of products are changed.
Note：
1）"●"is standard configuration,"○" is optional to purchase.
2）The maximum crushing output depends on the screen diameter, material quality and feeding frequency.
3) The screen mesh diameter can be made according to customers’ request.
4）The running noise depends on varied shredding material.
5）The standard power supply is 3Ø 380V 50Hz. Other power supply is available.
