General Introduction:
R brand RG-26G, RG-36G and RG-46G Series plastic granulator crusher made by Ningbo Beilun Rhong Machinery Manufacturing Co., Ltd., is used for plastic wastes regrinding and recycling industries. Our plastic granulators are designed according to European technical standard. Our plastic crushing machines are able to crush different plastic material and wastes like PET bottles, plastic drums and barrels, plastic bumpers, plastic thermoforming sheets and films, plastic PPR & PVC pipes and piping fittings, fruit & vegetable & beer cases and boxes, small and big plastic lumps and blocks, etc. All kinds of soft and hard plastics like PVC, ABS, HDPE, LDPE, PP, PC, PVC and PET can be crushed and grinded by our RHONG Plastic Crusher Machine.
Main Features:
1. European designed machine structure, very strong and easy for installation and maintenance.
2. Electric and mechanical safety system to keep machine and people in safe.
3. Special designed structure and high quality material of blades ensure high efficiency of crushing.
4. The optional blower conveying system and dust separator system can save manpower for material packing and transportation.
5. Three different types of rotating blades (V-shaped, Claw Type and Flat Type) are available.
6. Shockproof designed machine base to reduce machine vibration and noise.
Name | Centralized Plastic Granulator / Crusher/ Grinder | |||||||
Model | RG-2640G | RG-2650G | RG-3660G | RG-3680G | RG-4680G | RG-46100G | ||
Power | kw | 11 | 15 | 18.5 | 30 | 37 | 45 | |
Rotor Speed | rpm | 560 | 560 | 560 | 560 | 560 | 560 | |
Rotating Blades | V type |
pcs
| 6 | 6 | 6 | 6 | 6 | 6 |
-B | 12 | 15 | 18 | 24 | 24 | 30 | ||
-A | 24 | 30 | 36 | 48 | 48 | 60 | ||
Fixed Blades | pcs | 2 | 2 | 4 | 4 | 4 | 4 | |
Screen Diameter | Ø10 | Ø10 | Ø12 | Ø12 | Ø12 | Ø12 | ||
Chamber Size | mm | 320x400 | 320x500 | 460x600 | 460x800 | 560x800 | 560x1000 | |
Output | kg/h | 300~550 | 400~650 | 500~700 | 600~900 | 800~1200 | 900~1500 | |
Noise | dB(A) | 80~95 | 80~95 | 80~95 | 80~95 | 80~95 | 80~95 | |
Magnet at Feeding Mouth | ○ | ○ | ○ | ○ | ○ | ○ | ||
Blower Conveying & Cyclone System | ○ | ○ | ○ | ○ | ○ | ○ | ||
Manual Box | ● | ● | ● | ● | ● | ● | ||
Weight | kg | 550 | 650 | 1200 | 1350 | 1700 | 1850 | |

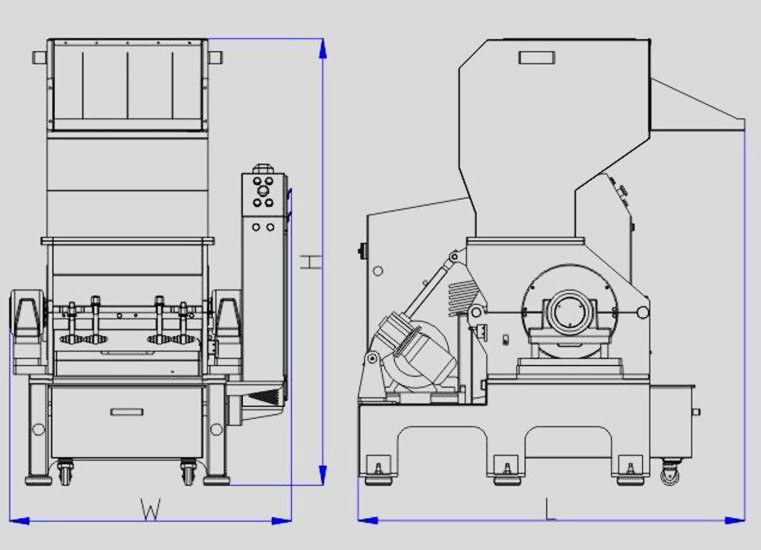

Dimensions: | ||||||||
L | mm | 1300 | 1300 | 1660 | 1660 | 1845 | 1845 | |
W | mm | 1080 | 1180 | 1300 | 1500 | 1560 | 1760 | |
H | mm | 1435 | 1435 | 1855 | 1855 | 2170 | 2170 | |
Please excuse for not note if some specifications of products are changed.
Note：
1）"●"is standard configuration,"○" is optional to purchase.
2）V-type rotating blades are standard type for AMG-600G/800G/800G+/1000G;
F-type flat rotating blades are standard type for AMG-400G and AMG-500G;
C-type claw rotating blades is optional to purchase.
3）The maximum crushing output depends on the screen diameter, material quality and feeding frequency.
4) The screen mesh diameter can be made according to customers’ request.
5）The running noise depends on varied shredding material.
6）The standard power supply is 3Ø 380V 50Hz. Other power supply is available.
