General Introduction:

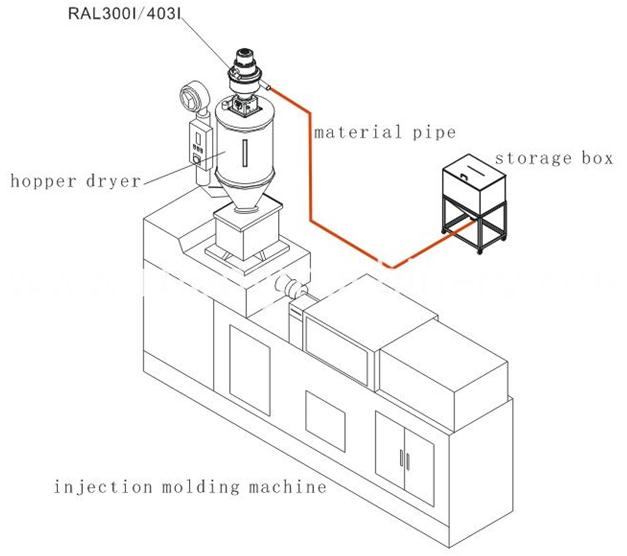

China Ningbo Beilun RHONG Machinery Manufacturing Co., Ltd. R brand RAL-300I plastic material vacuum autoloader machine is used to transport the plastic virgin and grinded material granules and pellets into hopper dryer or injection molding machine directly. RHONG RAL-300I Hopper Loader machine adopts imported AMETEK carbon-brush type motor, it ensures machine working with powerful force and capacity.
Main Features:
1. Adopts imported AMETEK carbon-brush type motor.
2. Global top brand SCHNEIDER electric parts, ensures stable work of machine.
3. Stainless steel vacuum hopper, keep material without pollution.
4. Microcomputer and remote controller makes plastic autoloader machine easy to operated.
5. Compacted structure of machine to save space.
Specification:
Model | Motor | Conveying Capacity (Kg/h) | Hopper Capacity (L) | Conveying Pipe diameter (mm) | Dimensions (mm) | Weight (Kg) | |
Type | Power | ||||||
RAL-300I | Carbon Brush | 1.5HP/1Phase | 300 | 6 | Ø38 | 550x 400 x350 | 20 |
Please excuse for not note if some specifications of products are changed!
Note:
1) The test condition of conveying capacity: vertical distance 4 meters, horizontal distance 1 meter.
2) The standard power voltage for AML-300G is 1Ø 220V 50/60Hz.
