Plastic Pipe & Pallets Granulator

Share to:
China Ningbo Beilun Rhong Plastic Machinery R brand plastic profiles granulators and crushers are specially designed crusher machine to crush different plastic profiles wastes like plastic pipes, PVC door and window profiles, plastic pallets, plastic sheets and so on.
  • RG-3660P RG-5680P RG-76120P
  • RHONG
  • 8479820090
Quantity:

General Introduction:

China Ningbo Beilun Rhong Plastic Machinery R brand plastic profiles granulators and crushers are specially designed crusher machine to crush different plastic profiles wastes like plastic pipes, PVC door and window profiles, plastic pallets, plastic sheets and so on. RHONG RG-P series granulators equipped with high efficiency blades structure and electric motor screw system to open the crushing room easily. Optional blower conveyor and cyclone system can pack the grinded material instantly to save manpower.

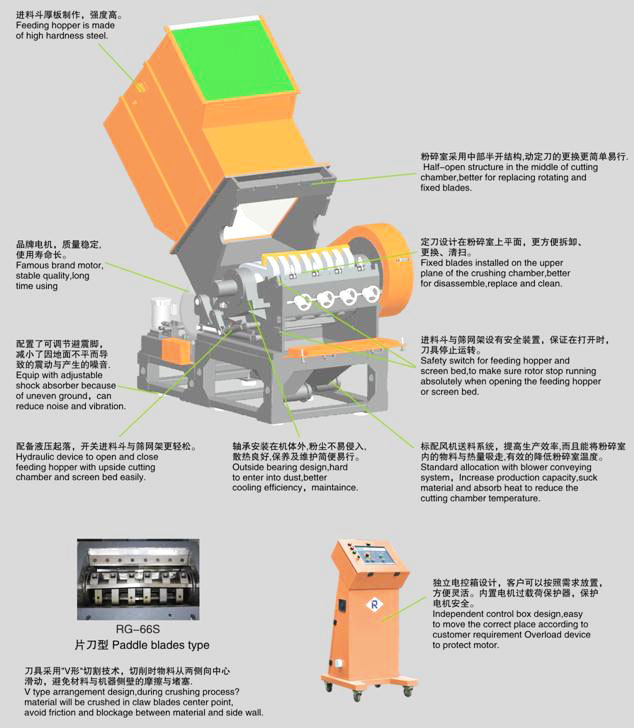

Main Features:

1. We supply different special design and solutions based on different material and customer’s special request.

2. V-shaped shear type blades structure ensures the high granulating efficiency.

3. External designed bearing set ensures stable performance and long life working.

4. Electrical protection system to protect machine and people in safe.

5. Special designed low inlet hopper, easy to feed material.


Specification:

Name

Plastic Profiles   Granulator

Model

RG-3660P

RG-5680P

RG-76120P

Power

kw

22

45

110

Rotor Speed

rpm

570

570

480

Rotating Blades

pcs

6

10

10

Fixed Blades

pcs

4

4

4

Screen Diameter


Ø12

Ø12

12

Hopper Size

mm

260x540

660x800

880x1230

Chamber Size

mm

320x600

660x800

930x1230

Output

kg/h

300~600

500~800

1200~1800

Noise

dB(A)

80~95

80~95

80~95

Blower Conveying & Cyclone System

3KW

5.5KW

5.5KW x 2   sets

Weight

kg

1200

2500

3500

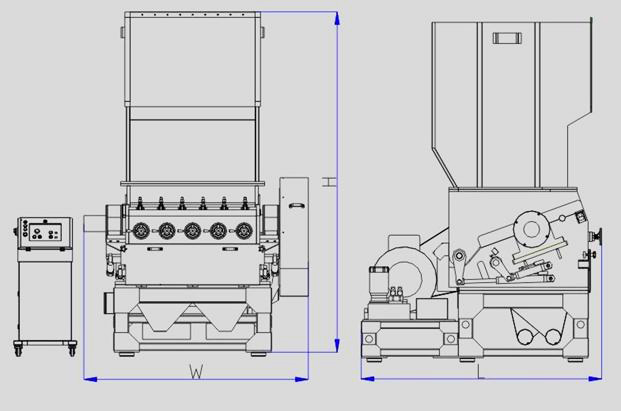

Dimensions:


L

mm

1200

1800

2274

W

mm

1830

2230

3280

H

mm

1400

1800

2552

Please excuse for not note if some specifications of products are changed.

Note:

1)""is standard configuration,"" is optional to purchase.

2)The output capacity depends on the screen diameter, material quality and feeding frequency.

3) The screen mesh diameter can be made according to customers’ request.

4)The running noise depends on varied shredding material.

5)The standard power supply is 3Ø 380V 50Hz. Other power supply is available.
