General Introduction:

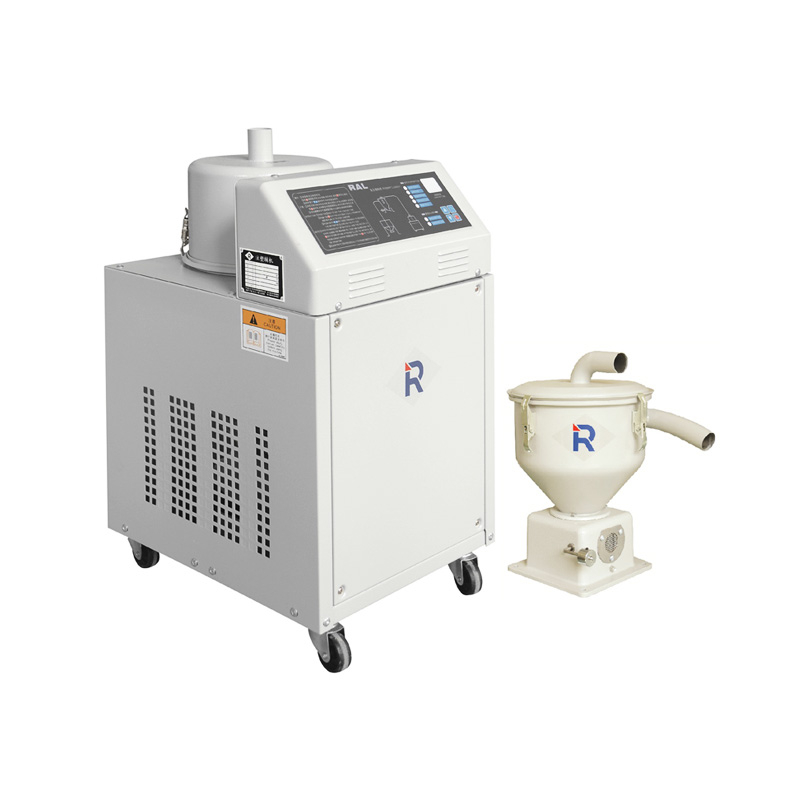

China RHONG Machinery R brand separate type RAL-303 andRAL-503 automatic plastic material vacuum autoloader feeder machine is auxiliary equipment for plastic injection molding machine, extrusion machine, blowing molding machine and pelletizing machine. Our autoloaders can feed the virgin or recycled plastic pellets and granules in the molding machine. It is a feeding method using negative pressure pneumatic to convey material.
Main Features:
1. Powerful copper coil induction type air pump to convey plastic material quickly
2. Global top brand SCHNEIDER electric parts, ensures stable work of machine.
3. Stainless steel vacuum hopper, keep material without pollution.
4. Microcomputer makes plastic autoloader machine easy to be operated.
5. Compacted structure of machine to save space.
Specification:
Model | Motor | Conveying Capacity (kg/hr) | Hopper Capacity (L) | Conveying PipeDiameter (mm) | Dimensions(mm) H x W x L | Weight (KG) | |||
Type | Power | Main Body | Hopper | Main body | Hopper | ||||
RAL-303 | Induction | 2HP | 400 | 6 | Ø38 | 650x450x400 | 500x450x300 | 45 | 5 |
RAL-503 | Induction | 3HP | 500 | 6 | Ø38 | 650x450x400 | 500x450x300 | 50 | 5 |
Please excuse for not note if some specifications of products are changed.
Note：
1) The test condition of conveying capacity: vertical distance 4 meters, horizontal distance 1 meter.
2) The standard power voltage is 3Ø 380V 50Hz; other voltage is available.
General Introduction:
China RHONG Machinery R brand separate type RAL-303 andRAL-503 automatic plastic material vacuum autoloader feeder machine is auxiliary equipment for plastic injection molding machine, extrusion machine, blowing molding machine and pelletizing machine. Our autoloaders can feed the virgin or recycled plastic pellets and granules in the molding machine. It is a feeding method using negative pressure pneumatic to convey material.
Main Features:
1. Powerful copper coil induction type air pump to convey plastic material quickly
2. Global top brand SCHNEIDER electric parts, ensures stable work of machine.
3. Stainless steel vacuum hopper, keep material without pollution.
4. Microcomputer makes plastic autoloader machine easy to be operated.
5. Compacted structure of machine to save space.
Specification:
Model | Motor | Conveying Capacity (kg/hr) | Hopper Capacity (L) | Conveying PipeDiameter (mm) | Dimensions(mm) H x W x L | Weight (KG) | |||
Type | Power | Main Body | Hopper | Main body | Hopper | ||||
RAL-303 | Induction | 2HP | 400 | 6 | Ø38 | 650x450x400 | 500x450x300 | 45 | 5 |
RAL-503 | Induction | 3HP | 500 | 6 | Ø38 | 650x450x400 | 500x450x300 | 50 | 5 |
Please excuse for not note if some specifications of products are changed.
Note：
1) The test condition of conveying capacity: vertical distance 4 meters, horizontal distance 1 meter.
2) The standard power voltage is 3Ø 380V 50Hz; other voltage is available.
