RAL-303K RAL-503K
Availability: | |
---|---|
Quantity: | |
General Introduction:

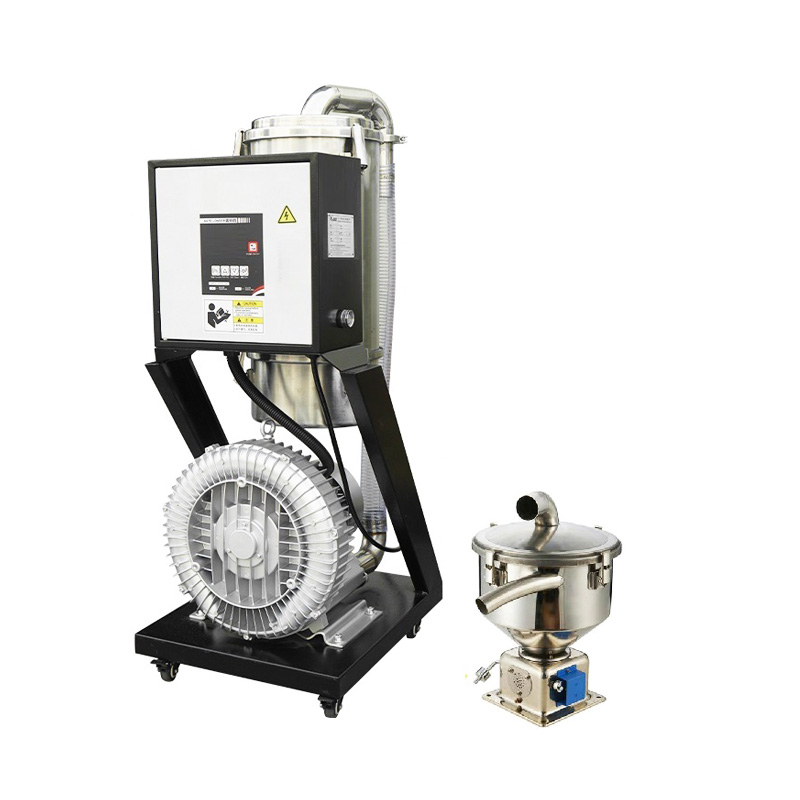

China Ningbo Beilun RHONG Machinery Manufacturing RHONG R brand RAL-303K and RAK-503K plastic material vacuum autoloader Hopper Loader machine is used for plastic material feeding and conveying for plastic injection molding machine, extrusion machine, blowing molding machine and pelletizing machine. Our autoloaders can feed the virgin or recycled plastic pellets and granules in the molding machine. It is a feeding method using negative pressure pneumatic to convey material.
Main Features:
1. Adopts high powerful induction type copper coil motor.
2. Global top brand SCHNEIDER electric parts, ensures stable work of machine.
3. Stainless steel vacuum hopper, keep material without pollution.
4. Microcomputer makes plastic vacuum autoloader machine easy to be operated.
5. Compacted structure of machine to save space.
Specification:
Model | Motor | Conveying Capacity (kg/hr) | Hopper Capacity (L) | Conveying PipeDiameter (mm) | Dimensions(mm) H x W x L | Weight (KG) | |||
Type | Power | Main Body | Hopper | Main body | Hopper | ||||
RAL-303K | Induction | 2HP | 400 | 6 | Ø38 | 990x530x420 | 500x450x300 | 50 | 5 |
RAL-503K | Induction | 3HP | 500 | 6 | Ø38 | 990x530x420 | 500x450x300 | 60 | 5 |
Please excuse for not note if some specifications of products are changed.
Note:
1) The test condition of conveying capacity: vertical distance 4 meters, horizontal distance 1 meter.
2) The standard power voltage is 3Ø 380V 50Hz; other voltage is available.
General Introduction:
China Ningbo Beilun RHONG Machinery Manufacturing RHONG R brand RAL-303K and RAK-503K plastic material vacuum autoloader Hopper Loader machine is used for plastic material feeding and conveying for plastic injection molding machine, extrusion machine, blowing molding machine and pelletizing machine. Our autoloaders can feed the virgin or recycled plastic pellets and granules in the molding machine. It is a feeding method using negative pressure pneumatic to convey material.
Main Features:
1. Adopts high powerful induction type copper coil motor.
2. Global top brand SCHNEIDER electric parts, ensures stable work of machine.
3. Stainless steel vacuum hopper, keep material without pollution.
4. Microcomputer makes plastic vacuum autoloader machine easy to be operated.
5. Compacted structure of machine to save space.
Specification:
Model | Motor | Conveying Capacity (kg/hr) | Hopper Capacity (L) | Conveying PipeDiameter (mm) | Dimensions(mm) H x W x L | Weight (KG) | |||
Type | Power | Main Body | Hopper | Main body | Hopper | ||||
RAL-303K | Induction | 2HP | 400 | 6 | Ø38 | 990x530x420 | 500x450x300 | 50 | 5 |
RAL-503K | Induction | 3HP | 500 | 6 | Ø38 | 990x530x420 | 500x450x300 | 60 | 5 |
Please excuse for not note if some specifications of products are changed.
Note:
1) The test condition of conveying capacity: vertical distance 4 meters, horizontal distance 1 meter.
2) The standard power voltage is 3Ø 380V 50Hz; other voltage is available.
