RG-3640K RG-4060K RG-5680K
| Availability: | |
|---|---|
| Quantity: | |
General Introduction:

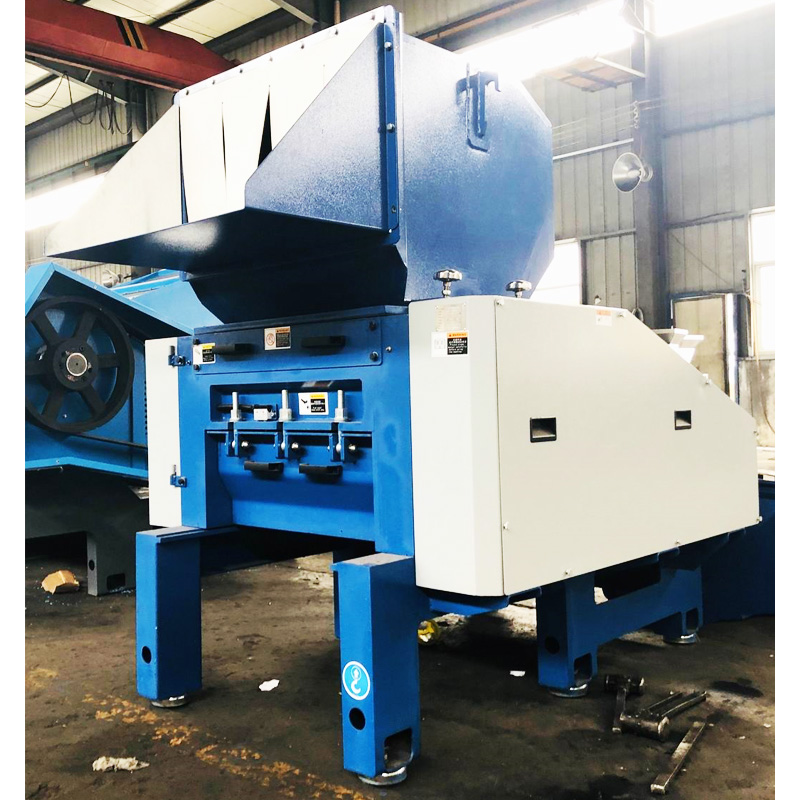

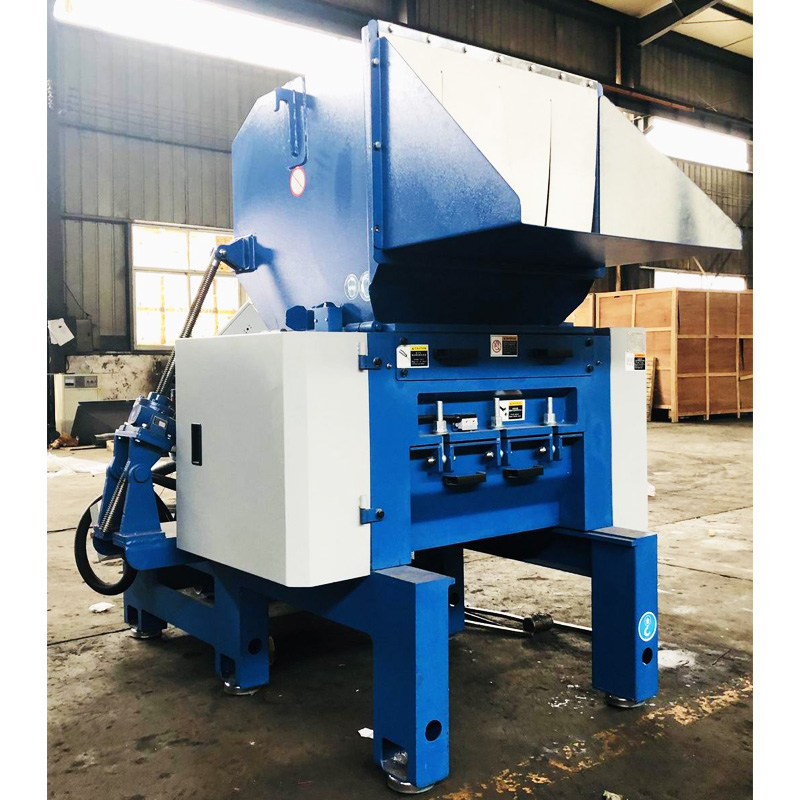

China Ningbo Beilun Rhong Plastic Machinery Manufacturing Co., Ltd. R brand plastic films granulators and crushers are specially designed granulating machine to crush plastic films and woven bags. RHONG brand RG-K series film and woven bag plastic crusher equipped with special blades structure to increase the output capacity, and our grinder machine equipped with electric motor screw system to open the crushing room easily. Optional blower conveyor and cyclone system can increase the crushing capacity and pack the grinded material instantly to save manpower.
Main Features:
1. 4 rows and 5 rows rotary blades and 3 rows fixed blades, increase the crushing capacity 2~3 times.
2. Electric motor & screw device to open and close the inlet hopper, easy to clean and maintenance.
3. External designed bearing set ensures stable performance and long life working.
4. Electrical protection system to protect machine and people in safe.
5. Equipped with height adjustable shockproof pad to reduce noise and vibration.
Specification:
Name | Plastic Profiles Granulator | |||
Model | RG-3640K | RG-4060K | RG-5680K | |
Power | kw | 22 | 37 | 55 |
Rotor Speed | rpm | 560 | 560 | 560 |
Rotating Blades | pcs | 8 | 8 | 10 |
Fixed Blades | pcs | 3 | 3 | 3 |
Screen Diameter | mm | Ø25 | Ø25 | Ø25 |
Hopper Size | mm | 4000x500 | 500x790 | 650x960 |
Chamber Size | mm | 410x430 | 460x600 | 620x820 |
Output | kg/h | 150~300 | 600~800 | 1000~1300 |
Noise | dB(A) | 80~95 | 80~95 | 80~95 |
Blower Conveying & Cyclone System | 5.5KW | 5.5KW | 5.5KW | |
Weight | kg | 1200 | 1800 | 2800 |
Dimensions: | ||||
L | mm | 1020 | 1430 | 1670 |
W | mm | 1860 | 2230 | 2440 |
H | mm | 1760 | 1980 | 2350 |
Please excuse for not note if some specifications of products are changed!
Note：
1）"●" means standard configuration, "○" means optional accessories.
2) The maximum output capacity depends on material quality and specific gravity.
3) The actual noise is based on material features and hardness.
4）The standard power supply is 3phase, 380V, 50Hz. Other power supply is available.
