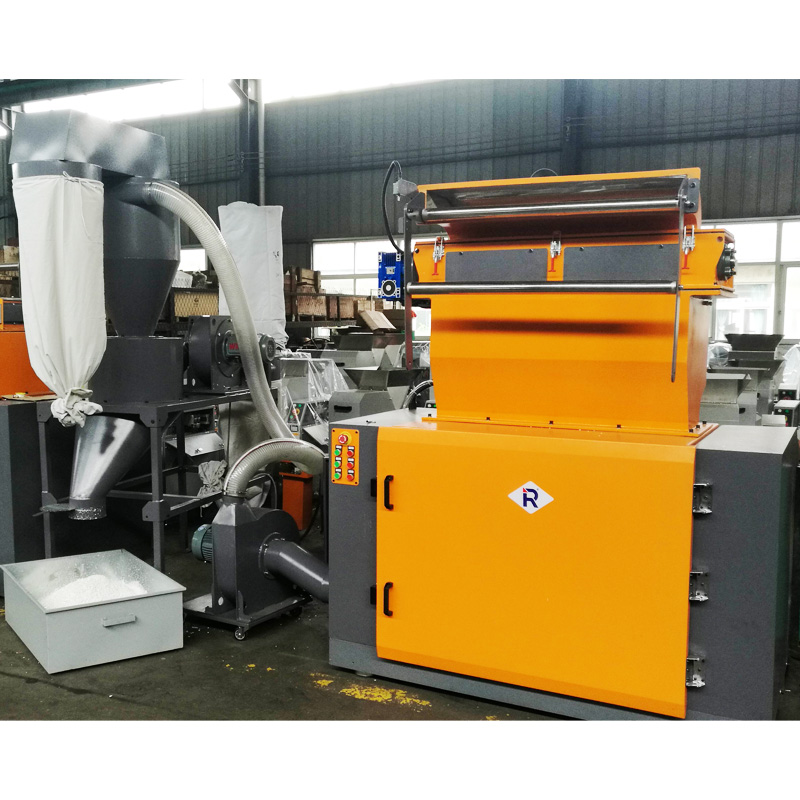

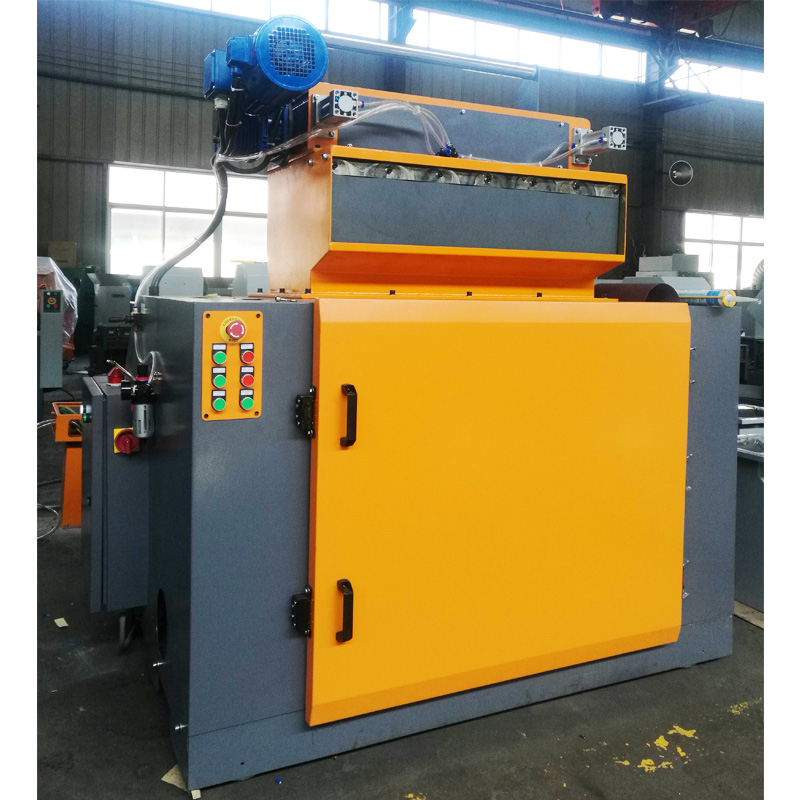

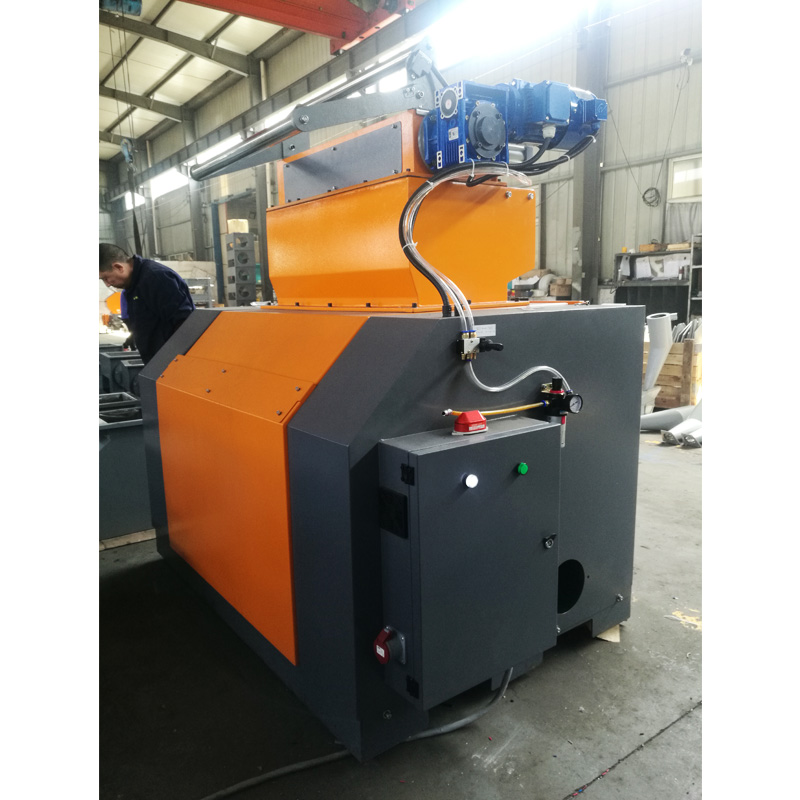

Plastic Films Crusher Granulator

Share to:
China Ningbo Beilun Rhong Plastic Machinery Manufacturing Co., Ltd. R brand online thermoforming sheet plastic granulators and crushers are specially designed plastic crusher machine to crush plastic PET, PP, PE thermoforming sheets.
  • RG-2190QX RG-21100QX RG-46120GX RG-46150GX
Quantity:

General Introduction:

China Ningbo Beilun Rhong Plastic Machinery Manufacturing Co., Ltd. R brand online thermoforming sheet plastic granulators and crushers are specially designed plastic crusher machine to crush plastic PET, PP, PE thermoforming sheets. RHONG brand RG-X series plastic crusher equipped with automatic roller driving system to feed the plastic sheets and the feeding speed is adjustable according to the speed of thermoforming line. RG-X series plastic granulators also have manual feeding mouth for crushing of defective products and small plastic pieces. RG-2190QX and RG-21100QX is soundproof type granulators.



Main Features:

1. Fully enclosed soundproof design to reduce the noise in workshop.

2. The crushing room can be opened completely, easy to clean machine and change blades.

3. External designed bearing set ensures stable performance and long life working.

4. Electric motor and screw system to open and close the crushing room.

5. Solid V-shaped shear type blades to increase the crushing output capacity.


Specification:

Name

Plastic   Profiles Granulator

Model

RG-2190QX

RG-21100QX

RG-46120GX

RG-46150GX

Power

kw

7.5

11

37

45

Rotor Speed

rpm

560

560

560

560

Rotating   Blades

pcs

6

6

6

6

Fixed Blades

pcs

4

4

4

4

Screen   Diameter

mm

Ø10

Ø10

Ø12

Ø12

Auto Feeding   Mouth

mm

800x850

80x950

80x1150

80x1450

Manual   Feeding Mouth

mm

210x920

210x1020

560x1200


Output

kg/h

300~600

400~800

600~1000

800~1200

Noise

dB(A)

80~95

80~95

80~95

80~95

Blower   Conveying & Cyclone System

3KW

3KW

5.5KW

5.5KW

Weight

kg

1200

1400

2200

2800

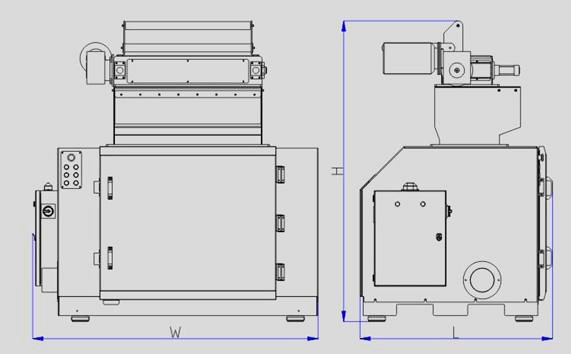

Dimensions:


L

mm

2235

2235

2392

2392

W

mm

1160

1360

1896

2196

H

mm

1520

1520

2067

2067

Please excuse for not note if some specifications of products are changed!

Note:

1) The maximum output capacity depends on material quality and specific gravity.

2) The actual noise is based on material features and hardness.

3)The standard power supply is 3phase, 380V, 50Hz. Other power supply is available.
