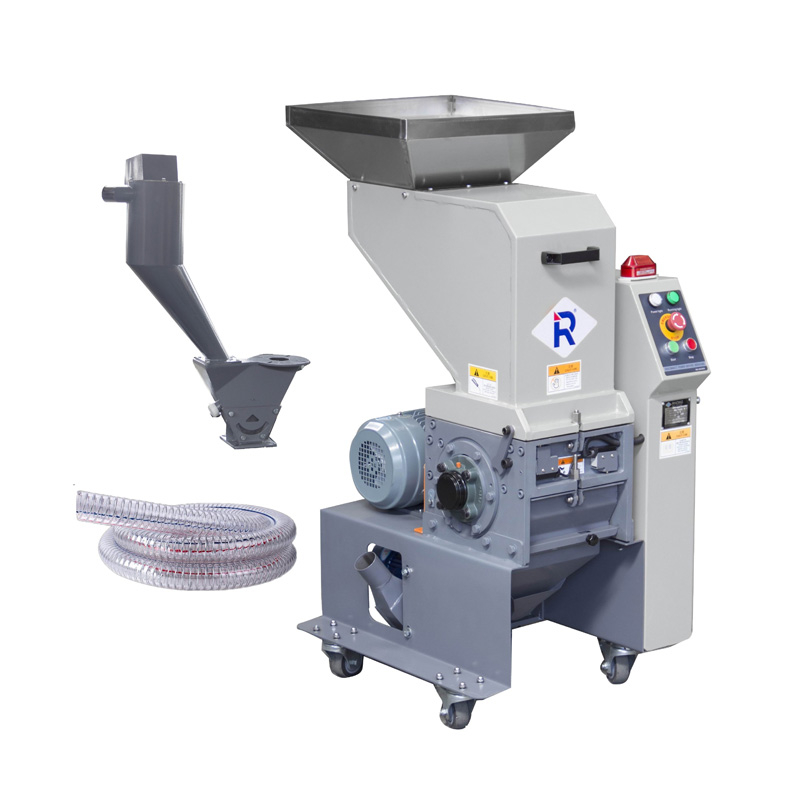

Medium-speed Granulator

Share to:

Ningbo Beilun Rhong Machinery R brand middle speed plastic granulator machine is a special designed plastic recycling machine to work with plastic injection molding machine.

  • RG-1619E RG-1626E RG-2136E RG-2142E
Quantity:

General Introduction:

Ningbo Beilun Rhong Machinery R brand middle speed plastic granulator machine is a special designed plastic recycling machine to work with plastic injection molding machine. The medium speed granulating machine is mini type and installed beside the press (injection machine) in workshop. R brand small plastic crushing machine can crush all type of plastic material like PP, ABS, HDPE, LDPE, PC material etc. The plastic crusher with blower conveyor system can covey the grinded material into injection machine fast and save manpower.

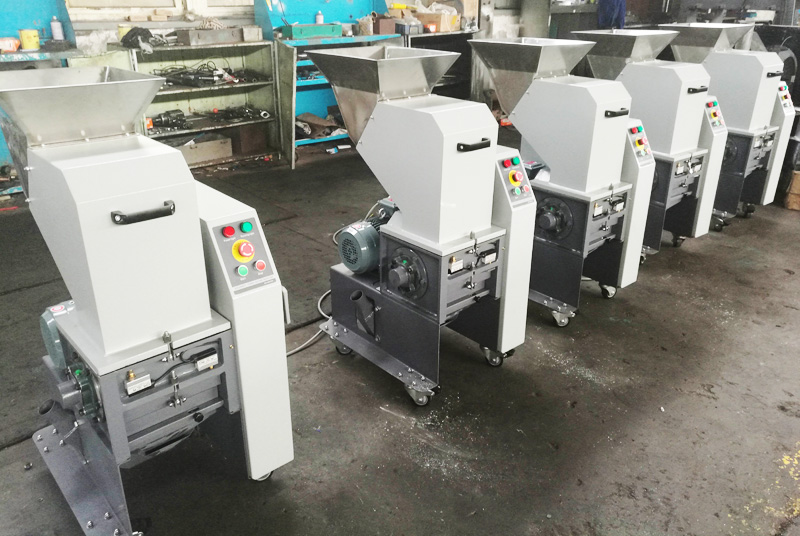

7


Features:

Low power, low noise, low dust

SKD11 blades installed in an optimized structure to insure high efficiency

Modularized and compact design, easy to clean and maintenance

Safety switch to protect people, overload device to protect motor

Fixed with wheels, easy to move


Main Features:

1. Mini size plastic crusher machine with wheels, easy to install and move.

2. The crusher screen mesh size can be made according to customer requirement.

3. Low power consumption motor with stable performance and long life working.

4. Electrical protection system to protect machine and people in safe.

5. Modularized machine structure, easy to clean and maintenance.


Specification:

Name

Medium Speed Granulator

Model

RG-1619R

RG-1626R

RG-2136R

RG-

2142R

Power

kw/

1.5kw/ 4poles

2.2kw/ 4poles

2.2kw/ 6poles

3.0kw/6poles

Rotor Speed

rpm

375

375

290

290

Rotating Blades

pcs

3

3

3

3

Fixed Blades

pcs

2

2

2

2

Screen Dia.

mm

Φ6

Φ6

Φ6

Φ6

Cutting Chamber Size

mm

230x190

230x260

315x360

315x420

Output

kg/h

80~160

100~200

150~250

200~300

Noise

dB(A)

80~85

80~85

80~85

80~85

Blower Conveying


Cyclone


Proportional Valve


Manual Box


Weight

kg

162

178

247

295

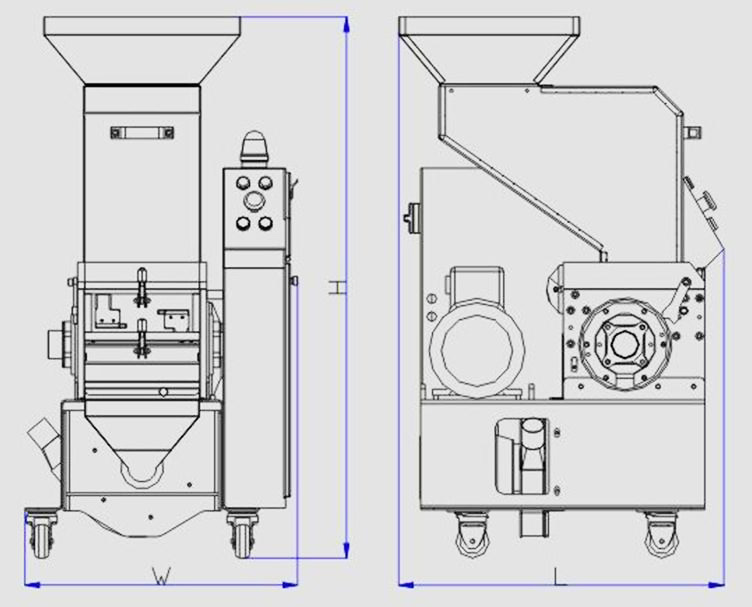

Dimensions:

L

mm

730

730

875

875

W

mm

565

610

715

775

H

mm

1215

1215

1395

1395


Please excuse for not note if some specifications of products are changed!

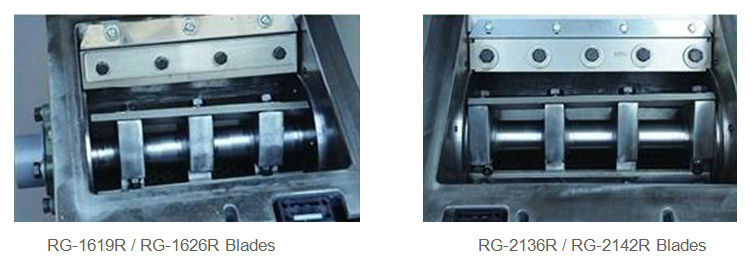

003


Note:

1)"" means standard configuration, "" means optional accessories.

2) The maximum output capacity depends on material quality and specific gravity.

3) The actual noise is based on material features and hardness.

4)The standard power supply is 3phase, 380V, 50Hz. Other power supply is available.
