RG-1830 RG-2035 RG-2040 RG-2350
Availability: | |
---|---|
Quantity: | |
General Introduction:

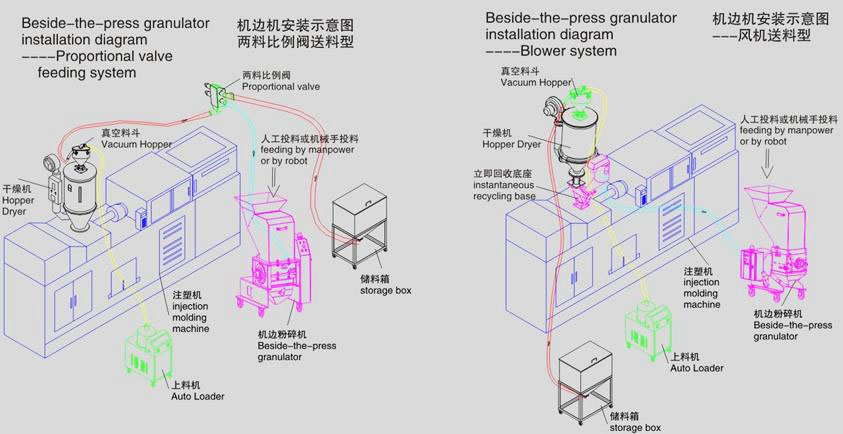

Ningbo Beilun Rhong Machinery R brand low speed granulators are used to granulate small plastic wastes and runners from mold of injection molding machine. Rhong mini size small granulators are normally installed beside injection molding machine. Rhong Low speed granulators and small crushers can crush different plastic material, such as HDPE, LDPE, PA with glass fibers, acrylic (PMMA), plexiglass, PET preform, PP and PC material, etc. The rotor shaft of the granulator machine runs in very low speed, it can reduce the machine working noise and dust pollution to the granulated material. Ningbo Rhong Machinery low speed plastic granulator (grinder, crusher) is equipped with blower conveying system and cyclone device, they are very useful to convey the crushed material into injection molding machine instantly.
Main Features:
1. Low power consumption, low running noise, low dust pollution.
2. Special designed knifes ensure the high granulating efficiency.
3. High quality gear motor supply a stable performance and long life working.
4. Electrical protection system to protect machine and people in safe.
5. Blower conveying and cyclone system to save manpower.
Specification:
Name | Low Speed Plastic Granulator | ||||
Model | RG-1830 | RG-2035 | RG-2040 | RG-2350 | |
Power | kw | 1.5 | 3.0 | 3.0 | 4.0 |
Rotor Speed | rpm | 150 | 150 | 150 | 150 |
Rotating Blades | pcs | 30 | 36 | 42 | 54 |
Fixed Blades | pcs | 2 | 2 | 4 | 4 |
Cutting Room Size | mm | 270x300 | 295x350 | 295x400 | 340x510 |
Output | kg/h | 50~100 | 80~150 | 100~200 | 150~260 |
Noise | dB(A) | 60~75 | 60~75 | 60~75 | 60~75 |
Blower Conveying | ● | ● | ● | ● | |
Cyclone for fast recycling | ● | ● | ● | ● | |
Proportional Valve | ○ | ○ | ○ | ○ | |
Manual Box | ○ | ○ | ○ | ○ | |
Weight | kg | 230 | 280 | 320 | 380 |

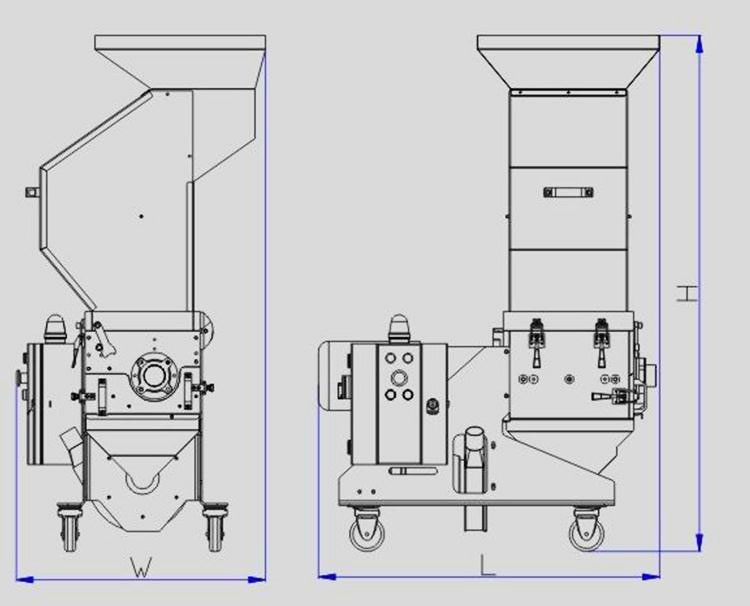

Dimensions: | |||||
L | mm | 870 | 990 | 1080 | 1160 |
W | mm | 695 | 720 | 720 | 800 |
H | mm | 1455 | 1495 | 1495 | 1630 |
Please excuse for not note if some specifications of products are changed!
Note:
1)"●" means standard configuration, "○" means optional accessories.
2) The maximum output capacity depends on material quality and specific gravity.
3) The actual noise is based on material features and hardness.
4)The standard power supply is 3phase, 380V, 50Hz. Other power supply is available.
