Large Capacity Plastic Granulator

Share to:
Ningbo Beilun Rhong Machinery R brand large size plastic granulator crusher machine is used to crush big size plastic wastes.
  • RG-66100S RG-66120S RG-66140S
Quantity:

General Introduction:

Ningbo Beilun Rhong Machinery R brand large size plastic granulator crusher machine is used to crush big size plastic wastes. RONG RG-66S Series plastic grinder machine can crush big bumper of automobile, large chemical drum and barrels, big size of UPVC pipe and fittings, large plastic sheet rolls, air conditioner parts, refrigerator parts, washing machine parts, big plastic pallets, PET bottles and so on.

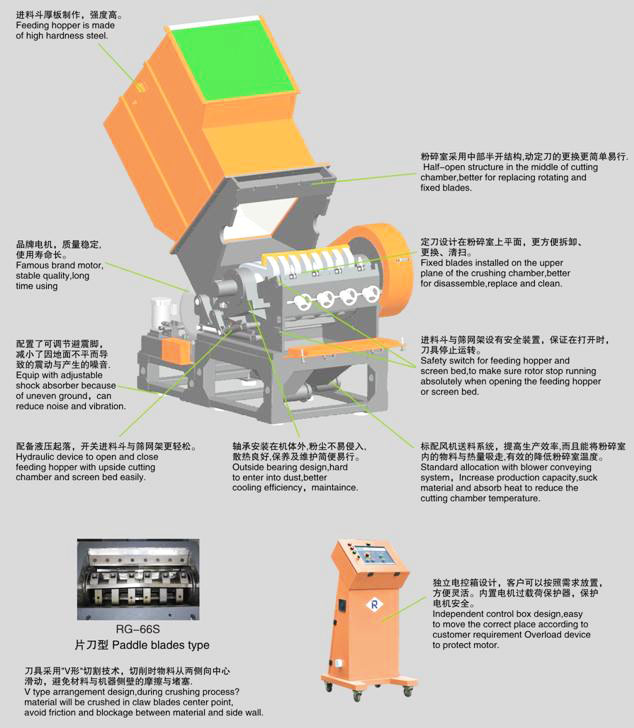

Main Features:

1. V-shaped shear type blades structure with low energy consumption and high crusher efficiency.

2. External bearing installation with high heat exchange efficiency and easy repairing and maintenance.

3. Electric motor + screw system to open and close crushing room and screen room.

4. Electrical protection system to protect machine and people in safe.

5. Static and dynamic balance testing on rotor shaft to ensure machine work smoothly and reliablely.


Specification:

Name

Heavy Duty   Centralized Granulator

Model

RG-66100S

RG-66120S

RG-66140S

Power

kw

75

110

132

Rotor Speed

rpm

450

450

450

Rotating Blades

pcs

6

6

6

Fixed Blades

pcs

4

4

4

Screen Diameter


Ø12

Ø12

Ø12

Chamber Size

mm

870x1000

870x1200

870x1400

Output

kg/h

1500~2500

1800~2800

2000~3000

Noise

dB(A)

100~120

100~120

100~120

Blower Conveying & Cyclone System

4KW x 2pcs

4KW x 2pcs

4KW x 2pcs

Hydraulic System for lifting of Hopper and   Screen

Weight

kg

4960

6200

7800

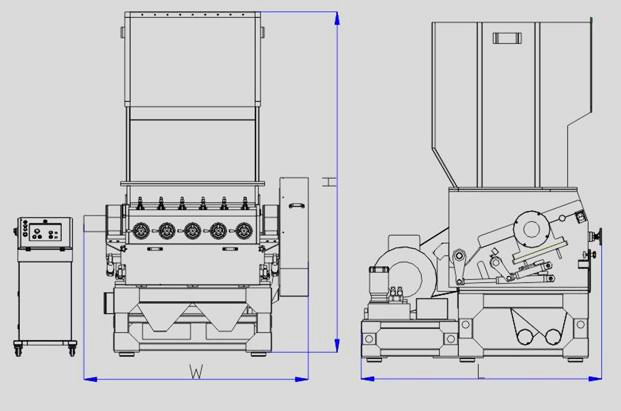

Dimensions:

L

mm

2290

2290

2290

W

mm

1980

2140

2340

H

mm

3240

3240

3240


Note:

1)"" means standard configuration, "" means optional accessories.

2) The maximum output capacity depends on material quality and specific gravity.

3) The actual noise is based on material features and hardness.

4)The standard power supply is 3phase, 380V, 50Hz. Other power supply is available.
