Heavy-duty Rapid Plastic Granulator

Share to:
Ningbo Beilun Rhong Machinery Manufacturing Co., Ltd., R brand RG-56E Series large size heavy duty rapid centralized plastic granulator crusher machine is designed to crush big size plastic products, like auto bumpers, big fruit cases and box, big barrels and drums, big size plastic pipe and fittings, big plastic parts of household electrical appliances, etc.
  • RG-5680E RG-56100E RG-56120E
Quantity:

General Introduction:

Ningbo Beilun Rhong Machinery Manufacturing Co., Ltd., R brand RG-56E Series large size heavy duty rapid centralized plastic granulator crusher machine is designed to crush big size plastic products, like auto bumpers, big fruit cases and box, big barrels and drums, big size plastic pipe and fittings, big plastic parts of household electrical appliances, etc. Our RHONG R brand large plastic crushing machine can make the above big and large size plastic wastes to be small pellets and flakes directly. Huge motor power and enormous crushing room, ensure machine work more powerful in high efficiency and large output capacity.

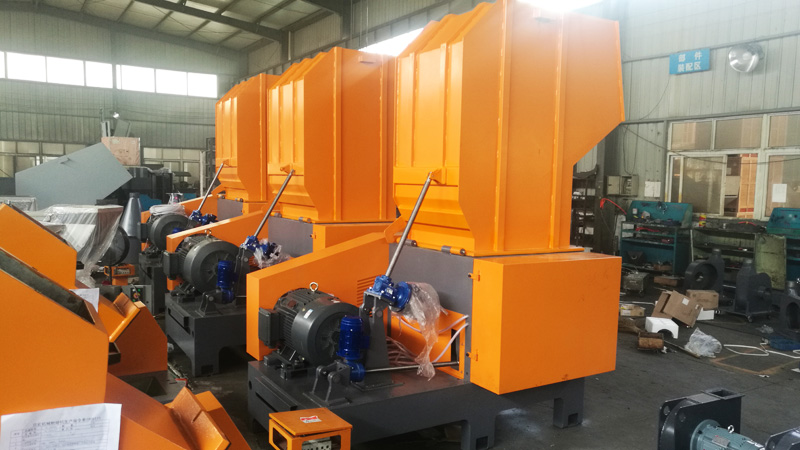

5.-Large-Plastic-Crusher

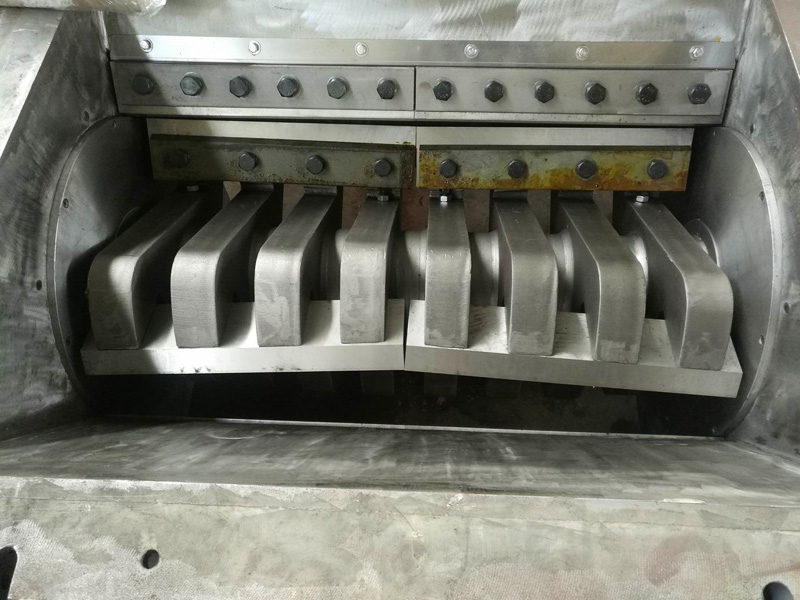

6.-Plastic-Crusher-blades


Main Features:

1. Independent electric control box, separate from machine to avoid dust pollution and vibration.

2. Mechanical and electrical protection system to keep machine and people in safe.

3. Superpower motor to ensure machine working powerful with more strength and high efficiency.

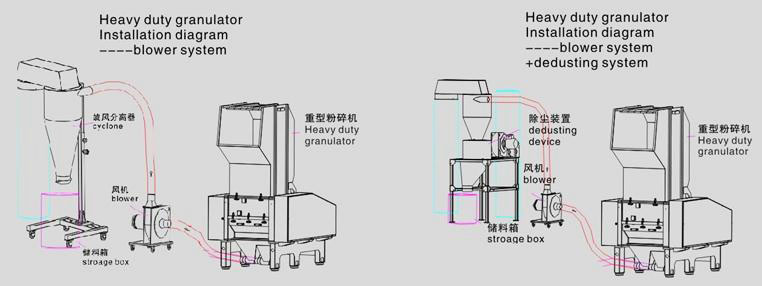

4. Optional blower conveyor, cyclone (silo) system and dust separator system are available to save manpower.

5. Water cooling system on bearings blocks keep bearing working in low temperature and long life.

6. V-shaped blades, Claw blades and Flat blades are optional for different customers’ request

7. Plastic Crusher equipped with shockproof pad to reduce vibration and noise.


Specification:

Name

Heavy Duty   Plastic Granulator / Crusher/ Grinder

Model

RG-5680E

RG-56100E

RG-56120E

Power

kw

37

45

55

Rotor Speed

rpm

560

560

560

Rotating Blades

V type

 pcs

6

6

6

-A


30

39

/

Fixed Blades

pcs

4

4

4

Screen Diameter


Ø12

Ø12

Ø12

Chamber Size

mm

800x800

800x1000

800x1200

Output

kg/h

1000~1600

1200~1800

1500~2500

Noise

dB(A)

90~110

90~110

90~110

Magnet at   Feeding Mouth

Blower Conveying & Cyclone System

Manual Box

Weight

kg

2850

3200

3700

Dimensions:

L

mm

2895

2895

2895

W

mm

1610

1825

1995

H

mm

2880

2880

2880

Please excuse for not note if some specifications of products are changed.

Note:

1)""is standard configuration,"" is optional to purchase.

2)The maximum crushing output depends on the screen diameter, material quality and feeding frequency.

3) The screen mesh diameter can be made according to customers’ request.

4)The running noise depends on varied shredding material.

5)The standard power supply is 3Ø 380V 50Hz. Other power supply is available.
