Big Capacity Vacuum Autoloader

Share to:
sharethis sharing button

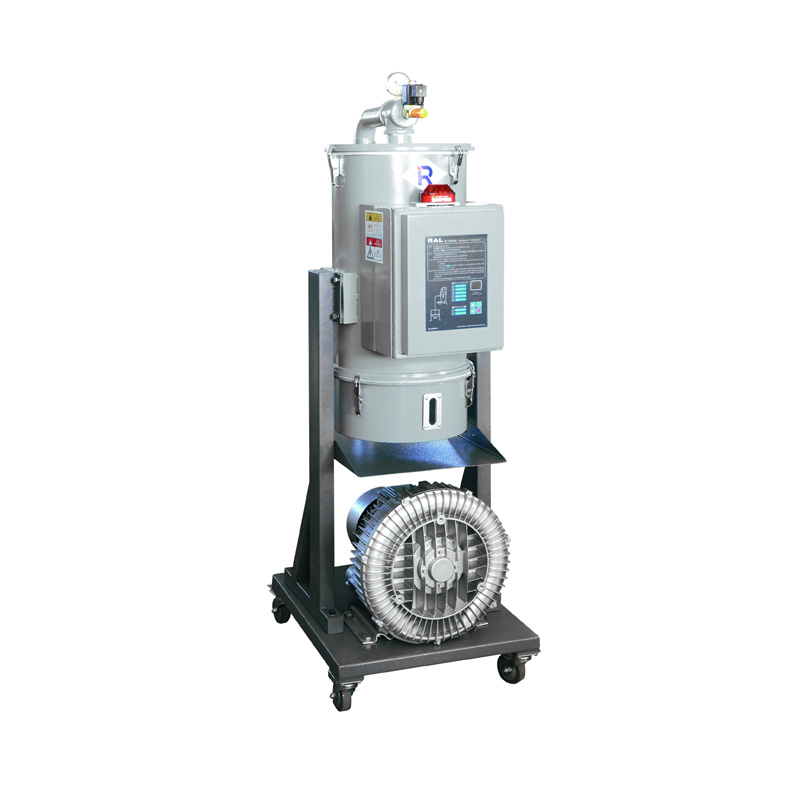

China Ningbo Beilun RHONG Machinery Manufacturing Co., Ltd. R brand RAL-7.5HP and RAL-10HP plastic material vacuum feeder uses a vortex air pump to pump air, so that the inlet of the suction nozzle and the entire system are in a certain vacuum state.
  • RAL-7.5HP RAL-10HP

Availability:
Quantity:

General Introduction:

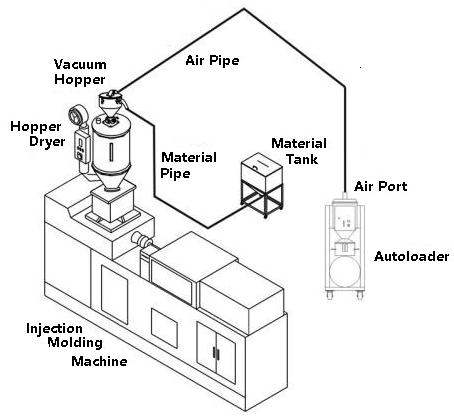

China Ningbo Beilun RHONG Machinery Manufacturing Co., Ltd. R brand RAL-7.5HP and RAL-10HP plastic material vacuum feeder uses a vortex air pump to pump air, so that the inlet of the suction nozzle and the entire system are in a certain vacuum state. The powder and granular materials are sucked into the nozzle along with the outside air to form a flow of material, and reach the hopper through the suction pipe. The material and air separate in the vacuum hopper. The separated materials enter into hopper dryer or injection molding machine.



Main Features:

1. The advantages of easy loading and unloading, easy cleaning, low noise, and dust-free transportation;

2. There is no delamination, and the material soft landing particles are not damaged;

3. Simple operation, sanitary and clean, no dead ends, easy to clean;

4. The building block structure, the inner and outer walls are polished, and the materials are not bonded;

5. Economical, energy-saving, environmentally friendly, and a good working environment helps increase productivity.


Specification:

Model

Motor

Conveying Capacity (kg/hr)

Hopper Capacity (L)

Conveying Pipe diameter (mm)

Dimensions(mm)

HxWxL

Weight

(KG)

Type

Power

Main   Body

Hopper

Main     body

Hopper

RAL-703

Induction

4HP

750

20

Ø51

1400x500x500

800x450x300

95

8

RALL-903

Induction

5.5HP

900

20

Ø51

1400x500x500

800x450x300

110

8

RAL-7.5HP

Induction

7.5HP

1000

20

Ø51

1800x540x680

800x450x300

130

8

RAL-10HP

Induction

10HP

1200

20

Ø51

1800x540x680

800x450x300

150

8

Please excuse for not note if some specifications of products are changed.

Note:

1) The test condition of conveying capacity: vertical distance 4 meters, horizontal distance 1 meter.

2) The standard power voltage is 3Ø 380V 50/60Hz; other voltage is available.
