Home / Products / Vacuum Autoloader / Big Capacity Vacuum Autoloader

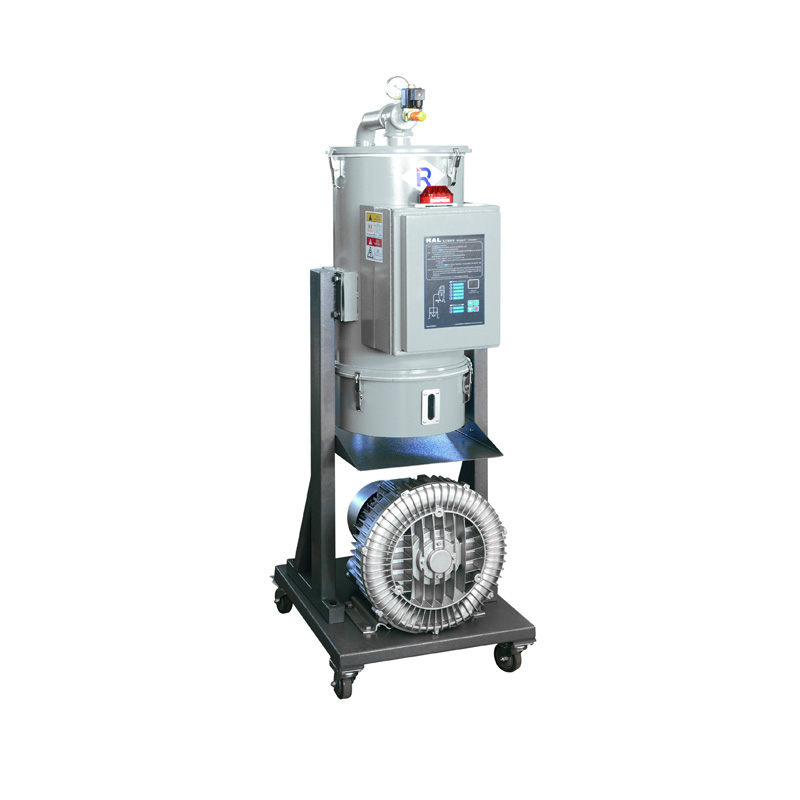

Big Capacity Vacuum Autoloader

Share to:
China Ningbo Beilun RHONG Machinery Manufacturing Co., Ltd. R brand RAL-703 and RAL-903 plastic material vacuum autoloader feeder machine is used to convey and feed plastic granules and pellets into injection molding machine, plastic extruder machine, blowing molding machine and pelletizer line directly.
  • RAL-703 RAL-903
Quantity:

General Introduction:

China Ningbo Beilun RHONG Machinery Manufacturing Co., Ltd. R brand RAL-703 and RAL-903 plastic material vacuum autoloader feeder machine is used to convey and feed plastic granules and pellets into injection molding machine, plastic extruder machine, blowing molding machine and pelletizer line directly. RHONG RAL-703 and RAL-903 Hopper Loader machine adopts high efficiency and powerful induction type air pump, it ensures machine working with powerful force and big capacity for long way transportation.



Main Features:

1. Powerful induction type motor ensures big capacity and high efficiency.

2. Global top brand SCHNEIDER electric parts, ensures stable work of machine.

3. Stainless steel vacuum hopper, keep material without pollution.

4. Microcomputer makes plastic autoloader machine easy to be operated.

5. Compacted structure of machine to save space.



Specification:

Model

Motor

Conveying Capacity (kg/hr)

Hopper Capacity (L)

Conveying Pipe diameter (mm)

Dimensions(mm)

HxWxL

Weight

(KG)

Type

Power

Main   Body

Hopper

Main     body

Hopper

RAL-703

Induction

4HP

750

20

Ø51

1400x500x500

800x450x300

95

8

RAL-903

Induction

5.5HP

900

20

Ø51

1400x500x500

800x450x300

110

8

RAL-7.5HP

Induction

7.5HP

1000

20

Ø51

1800x540x680

800x450x300

130

8

RAL-10HP

Induction

10HP

1200

20

Ø51

1800x540x680

800x450x300

150

8

Please excuse for not note if some specifications of products are changed.

Note:

1) The test condition of conveying capacity: vertical distance 4 meters, horizontal distance 1 meter.

2) The standard power voltage is 3Ø 380V 50/60Hz; other voltage is available.
