General Introduction:

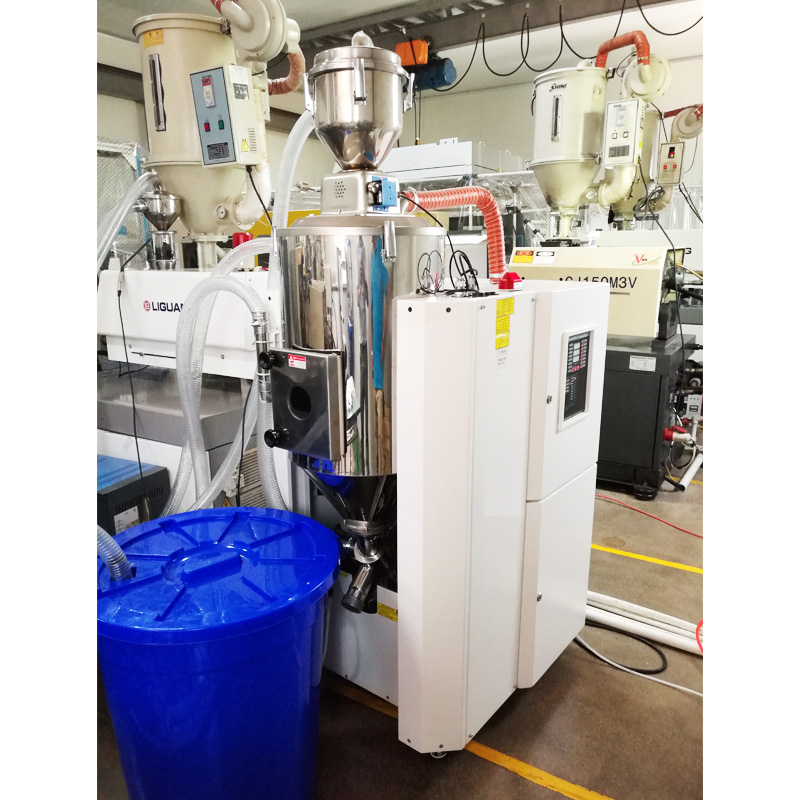

RHONG Machinery RDC Series All-in-one Dehumidifier Autoloader combine the function of dehumidifying, drying and two-stage conveying into one single unit(it is optional purchase for three-stage conveying), specified for the production of "hygroscopic engineer plastic" products, such as PA, PC, PBT, ABS, PMMA etc. Under ideal conditions, a better honeycomb is optional to use so as to make dew point lower than -40℃. The machine is characterized with nice appearance the patent for chain-wheel transmission design, advanced technology, reliable performance. It is an indispensable machine in the modern industry.

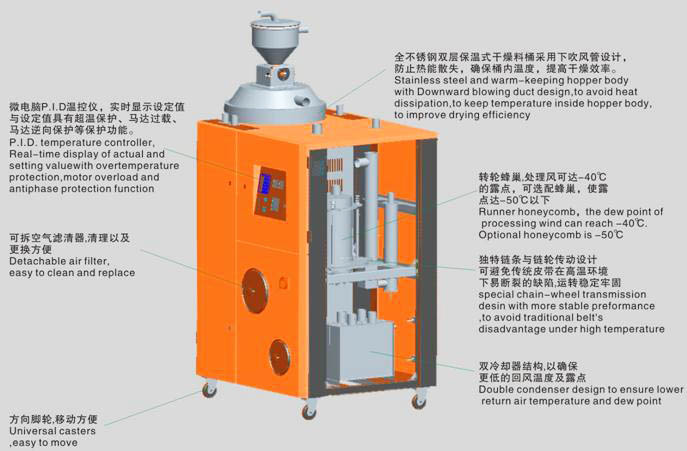

Main Features:
1. European-design style, attractive appearance.
2. Up-to-date chain-wheel transmission design with more stable performance, long time using life.
3. Equipped with silica gel absorption honeycomb rotor for getting more stable and low dew-point drying air.
4. Stainless and insulated drying hopper features air pipe down-blowing design. This improves drying efficiency, and reduces energy consumption while maintain a steady drying effect.
5. Adopted two condensers to ensure a low return air temperature and low dew point.
6. Equipped with material cut valve for conveying system to ensure no material remains in the material pipe.
> Adopted P.I.D. temperature controller, with over temperature protector, overload protection on motor, reverse phase protection on electric machine etc.
7. Closed-loop conveying system eliminates the possibility of moisture re-absorption during material conveying.
8. It is optional purchase for a dew point monitor, in order to monitor humidifying effect anytime.
Specification:
Model | RDC-28L/30H | RDC-38L/30H | RDC-38L/50H | RDC-88L/50H | RDC-118L/80H | RDC-168L/80H | |
Drying system | |||||||
Dryer heater power | Kw | 3 | 3 | 4 | 4 | 6 | 6 |
Dryer blower power | Kw | 0.18 | 0.18 | 0.4 | 0.4 | 0.75 | 0.75 |
Drying hopper capacity | L | 28 | 38 | 38 | 88 | 118 | 168 |
Dehumidifying system | |||||||
Regeneration heater power | Kw | 3 | 3 | 3 | 3 | 3.5 | 3.5 |
Regeneration blower power | Kw | 0.18 | 0.18 | 0.18 | 0.18 | 0.4 | 0.4 |
Dry air capacity | m³/hr | 30 | 30 | 50 | 50 | 80 | 80 |
Conveying system | |||||||
Conveying blower power | Kw | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
Dia. of conveying hose | inch | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
RAL-E Infrared hopper | L | 3 | 3 | 3 | 6 | 6 | 6 |
RAL-P Vacuum Hoppwer | L | 3 | 3 | 3 | 6 | 6 | 6 |

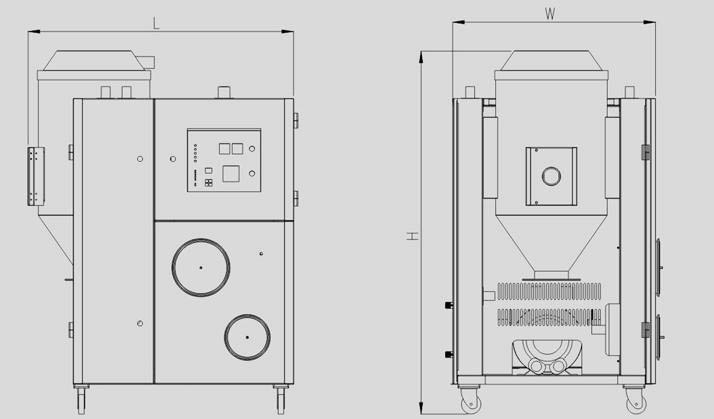

External size HxWxL mm | |||||||
H | 1500 | 1600 | 1500 | 1700 | 1850 | 1850 | |
W | 860 | 860 | 860 | 860 | 860 | 860 | |
L | 1100 | 1100 | 1100 | 1100 | 1250 | 1250 | |
Net weight | Kg | 180 | 200 | 240 | 260 | 280 | 270 |
Model | RDC-168L/120H | RDC-228L/120H | RDC-228L/150H | RDC-308L/150H | RDC-308L/200H | RDC-458L/200H | |
Drying system | |||||||
Dryer heater power | Kw | 6 | 6 | 7.2 | 7.2 | 12 | 12 |
Dryer blower power | Kw | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
Drying hopper capacity | L | 168 | 228 | 228 | 308 | 308 | 458 |
Dehumidifying system | |||||||
Regeneration heater power | Kw | 3.5 | 3.5 | 4 | 4 | 5.4 | 5.4 |
Regeneration blower power | Kw | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
Dry air capacity | m³/hr | 120 | 120 | 150 | 150 | 200 | 200 |
Conveying system | |||||||
Conveying blower power | Kw | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Dia. of conveying hose | inch | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
RAL-E Infrared hopper | L | 6 | 12 | 12 | 12 | 12 | 12 |
RAL-P Vacuum Hoppwer | L | 6 | 12 | 12 | 12 | 12 | 12 |
External size HxWxL mm | |||||||
H | 1850 | 2000 | 2100 | 2100 | 2100 | 2300 | |
W | 860 | 860 | 1000 | 1000 | 1000 | 1000 | |
L | 1250 | 1250 | 1350 | 1350 | 1350 | 1350 | |
Net weight | Kg | 300 | 360 | 500 | 520 | 550 | 580 |
Please excuse for not note if some specifications of products are changed.
Note:
The standard power supply is 3Ø 380V 50Hz. Other power supply is available.
