RCM-3A RCM-5A RCM-8A RCM-10A RCM-12A RCM-15A RCM-20A RCM-25A RCM-30A
Availability: | |
---|---|
Quantity: | |
General Introduction:
Ningbo RHONG Machinery R brand RCM-A Series Industrial Water Chillers are air-cooled chillers specially designed to plastic injection molding manufacturing industries. RHONG water chillers can greatly short the plastic molding time and raise the production efficiency. Our water chilling machine can supply chilled water with low temperature 5~35°C degree Celsius, and PID temperature controller can control accuracy to be ±0.1°C degree Celsius. Except plastic molding, our air cooled water cooling machine can also be used in electroplating, food processing, electronic, textile, chemical, etc.
Main Features:
1. Adopt the global top brand and quality of compressor, water pump, expansion valve, drying-filter, etc.
2. The latest design of stainless steel board type heat exchanger ensures a high cooling efficiency.
3. Open type stainless steel water tank, easy to clean and maintenance.
4. Overload protection system to protect compressor, water pump and cooling fans.
5. Global top brand electric parts and PLC controller ensures stable running of machine.
Specification:
Name | Air Cooled Water Chiller Machine | ||||||||||
Model | RCM-3A | RCM-5A | RCM-8A | RCM-10A | RCM-12A | RCM-15A | RCM-20A | RCM-25A | RCM-30A | ||
Chilling Capacity | kw | 7.5 | 12.5 | 18 | 23 | 28 | 36 | 46 | 58 | 72 | |
Kcal/h | 6450 | 10750 | 15480 | 19780 | 24080 | 30960 | 39560 | 49880 | 61920 | ||
Compressor | HP | 3 | 5 | 8 | 10 | 12 | 15 | 20 | 25 | 30 | |
Refrigerant | R22 / R407C | ||||||||||
Evaporator | Tube-in Shell / Stainless Steel Board Type Heat Exchanger | ||||||||||
Condenser | Tube Fin Type | ||||||||||
Fan Power | kw/pcs | 0.25 | 0.19x2 | 0.25x2 | 0.42x2 | 0.25x4 | 0.25x4 | 0.42x4 | 0.42x6 | 0.42x6 | |
Water Tank | L | 56 | 65 | 113 | 129 | 173 | 173 | 271 | 350 | 400 | |
Pump Power | KW | 0.75 | 1.5 | 2.2 | |||||||
Max. Flow | L/min | 100 | 200 | 600 | |||||||
Inlet Pipe Diameter | 1” | 1.5” | 2.5” | ||||||||
Outlet Pipe Diameter | 1” | 1.5” | 2.5” | ||||||||
Weight | kg | 220 | 280 | 350 | 450 | 530 | 550 | 700 | 750 | 780 | |

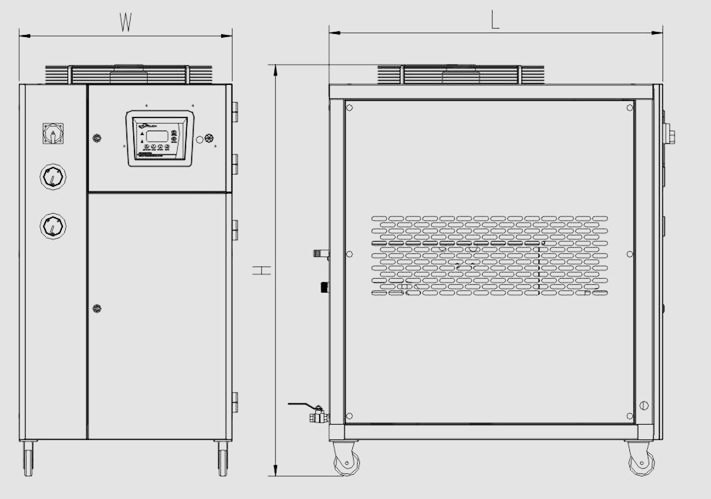

Dimensions: | |||||||||||
L | mm | 1090 | 1250 | 1350 | 1350 | 1700 | 1700 | 1900 | 2150 | 2150 | |
W | mm | 760 | 760 | 860 | 960 | 1200 | 1200 | 1200 | 1480 | 1480 | |
H | mm | 1250 | 1320 | 1560 | 1620 | 1750 | 1750 | 1750 | 1800 | 1800 | |
Please excuse for not note if some specifications of products are changed!
Note:
1)The cooling capacity is measured when the outgoing water temperature is 12°C and ambient temperature is 30°C.
2) The standard power supply is 3Ø, 380V, 50HZ. Other power supply is available
